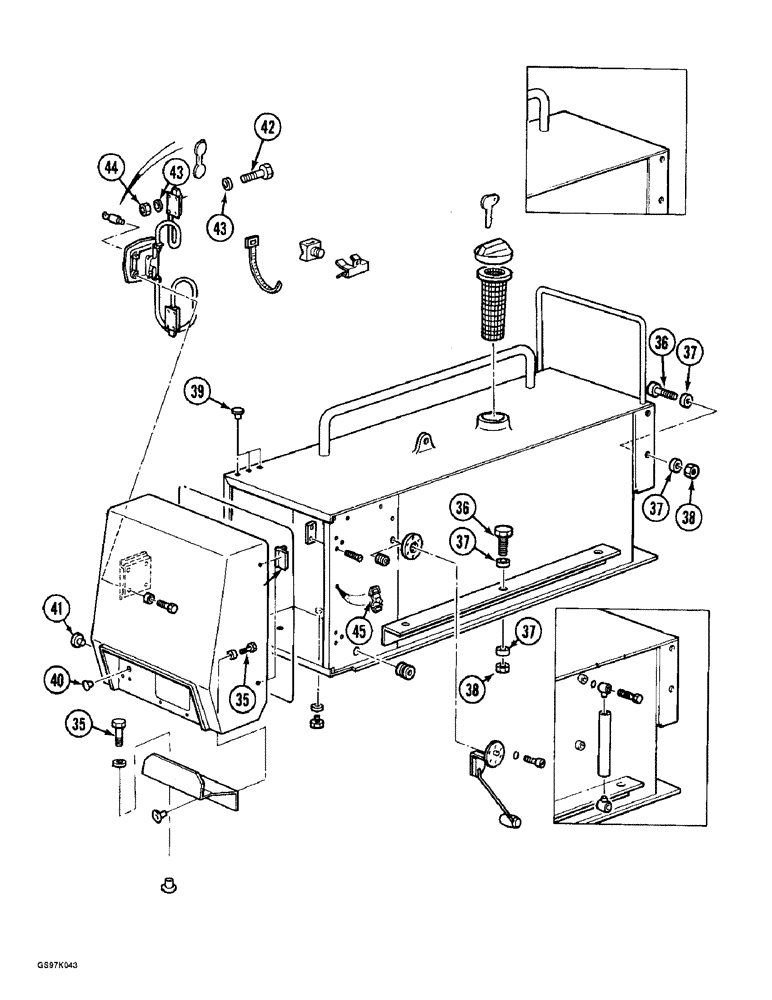

Запчасти Case 888 (3-04) - FUEL TANK AND STORAGE COMPARTMENT, CONT. (03) - FUEL SYSTEM

35

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

3шт.

36

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

5шт.

37

P4328747

WASHER

SPACER - bolt, 14 mm thick

10шт.

38

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

5шт.

39

P3337427

PLASTIC PLUG

PLUG - plastic, top of fuel tank

3шт.

40

P3037441

PLASTIC PLUG

PLUG - plastic, front of storage compartment

1шт.

41

P3237454

PLASTIC PLUG

PLUG - plastic, side of storage compartment

1шт.

42

P1032901

SCREW

BOLT - hex socket, 5 mm x 25 mm

8шт.

43

P5428780

WASHER

SPACER - bolt, 3.25 mm thick

16шт.

44

P1334551

NUT

- hex, self-locking, 5 mm

8шт.

45

P3036926

BASE

RETAINER - harness strap

7шт.
