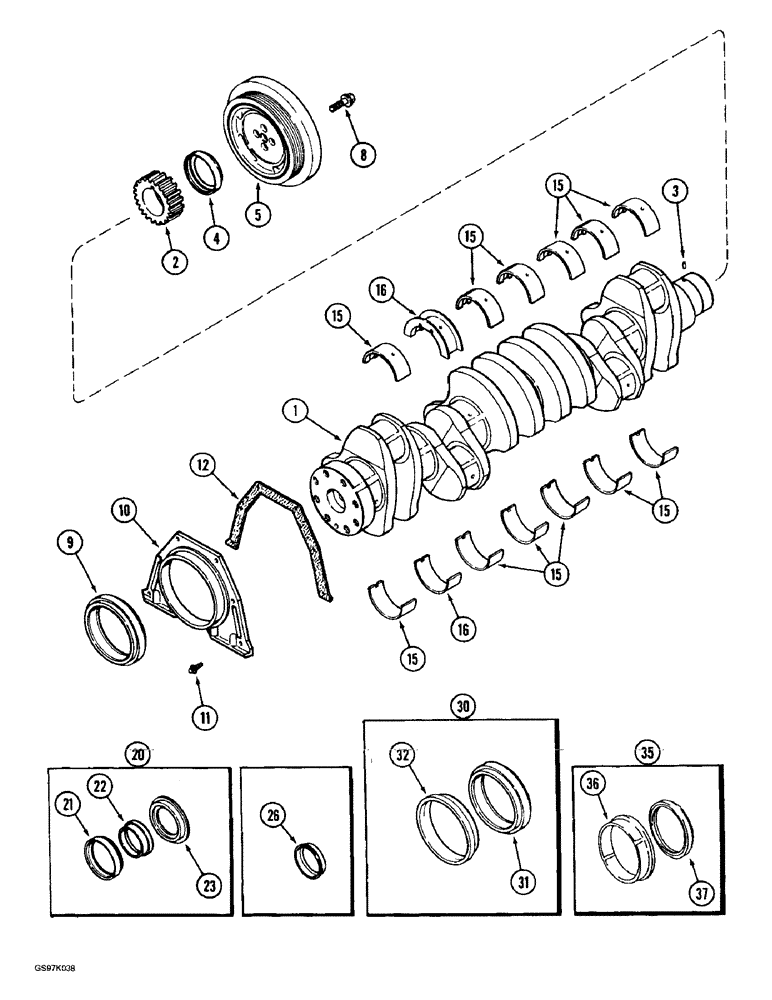

Запчасти Case 888 (2-52) - CRANKSHAFT, 6T-590 DIESEL ENGINE (02) - ENGINE

JR908032

REMAN-CRANKSHAFT

CRANKSHAFT - engine, remanufactured, North America only, component parts do not apply to the remanufactured assembly

1шт.

JR918324

CRANKCASE

CRANKSHAFT - engine, remanufactured, North America only, no longer available, order remanufactured crankshaft JR908032

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft, use this number to return crankshaft for credit when using a remanufactured assembly

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine, new (Replaces crankshaft assembly J908032), Includes: Ref. 2 and 3

1шт.

2

J929027

PINION

GEAR - crankshaft (Replaces gears J901258 and J912883)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order kit J909410, Ref. 20

1шт.

5

J914454

DAMPER

PULLEY - vibration dampener

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, 12 mm x 36 mm

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order Ref. 30

1шт.

10

J921043

REAR COVER

RETAINER - rear seal (Replaces retainers J906526 and J9113447)

1шт.

11

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

12

J928493

GASKET

- seal retainer (Replaces gaskets J901019 and J914386)

1шт.

15

A77405

CRANKSHAFT BEARING

KIT - bearing, main, upper and lower, standard

6шт.

15

A77472

BEARING SET

KIT - bearing, main, upper and lower, 0.25 mm undersize

6шт.

15

A77474

BEARING SET

KIT - bearing, main, upper and lower, 0.5 mm undersize

6шт.

15

A77476

BEARING SET

KIT - bearing, main, upper and lower, 0.75 mm undersize

6шт.

15

A77478

BEARING SET

KIT - bearing, main, upper and lower, 1.0 mm undersize

6шт.

16

A77406

CRANKSHAFT BEARING

KIT - bearing, main thrust, upper and lower, standard

1шт.

16

A77473

THRUST BEARING

KIT - bearing, main thrust, upper and lower, 0.25 mm undersize

1шт.

16

A77475

THRUST BEARING

KIT - bearing, main thrust, upper and lower, 0.5 mm undersize

1шт.

16

A77477

THRUST BEARING

KIT - bearing, main thrust, upper and lower, 0.75 mm undersize

1шт.

16

A77479

THRUST BEARING

KIT - bearing, main thrust, upper and lower, 1.0 mm undersize

1шт.

20

J904353

GASKET KIT

KIT - seal, oil, crankshaft front, Includes: Ref. 20 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order kit J904353

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit J904353

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit J904353

1шт.

26

J802820

PACKAGE, REPAIR

SLEEVE - wear

1шт.

30

A77809

GASKET KIT

KIT - seal, oil, crankshaft rear (Replaces kits J904323 and J909410), Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order kit A77809

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order kit A77809

1шт.

35

A77810

SERVICE KIT

KIT - wear sleeve, crankshaft rear, Includes: Ref. 36 - 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order kit A77810

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL, order kit A77810

1шт.
