Запчасти Case 888 (2-50) - ENGINE OIL FILL, 6T-590 DIESEL ENGINE (02) - ENGINE

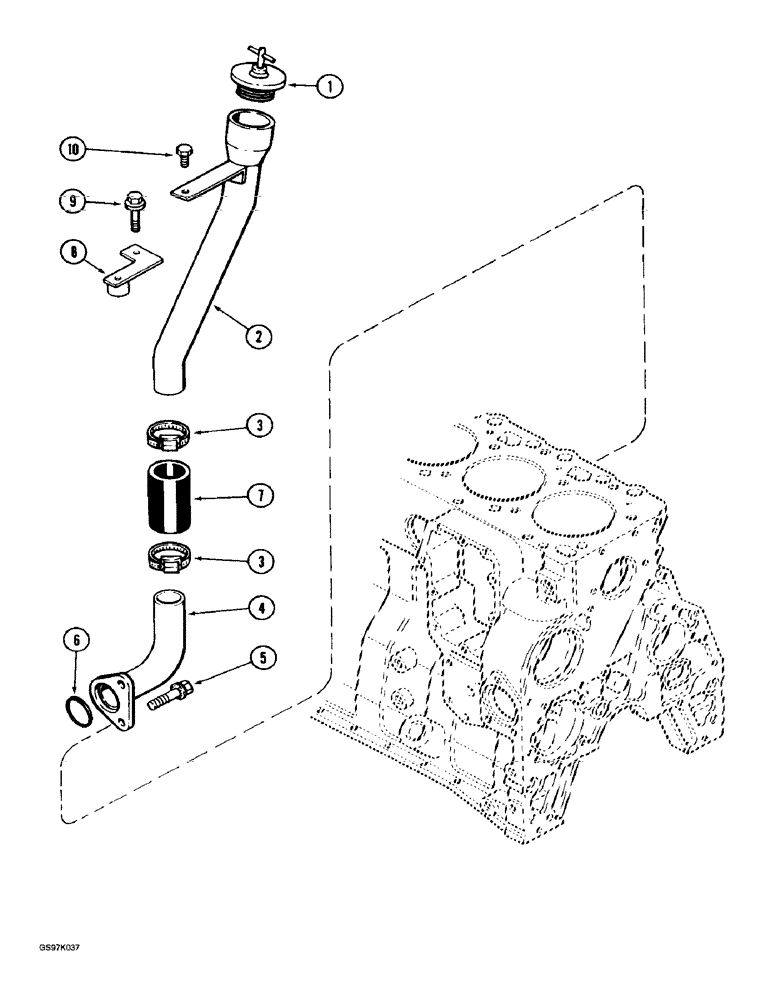

Схема запчастей Case 888 - (2-50) - ENGINE OIL FILL, 6T-590 DIESEL ENGINE (02) - ENGINE
8
5
10
6
2
4
3
7
3
9
1

Артикул

Название

Примечание

Количество

1

A77424

FILLER CAP

CAP - fill, oil

1шт.

2

J912689

TUBE,38.1 mm OD x 371.1 mm L

- oil fill extension

1шт.

3

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

retaining #24, 1.06/2.00 Type F Worm

2шт.

4

J912687

TUBE,38.1 mm ID x 195.9 mm L

- oil fill

1шт.

5

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, grade 10.9

2шт.

6

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing (Replaces O-ring J906704)

1шт.

7

J912686

HOSE,38.1mm ID x 84mm L

Oil Fill Tube Connecting 1.50 mm ID x 84.00 mm

1шт.

8

J912683

TUBE

GASKET - oil fill

1шт.

9

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

10

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

1шт.

Выбрано товаров: 10
