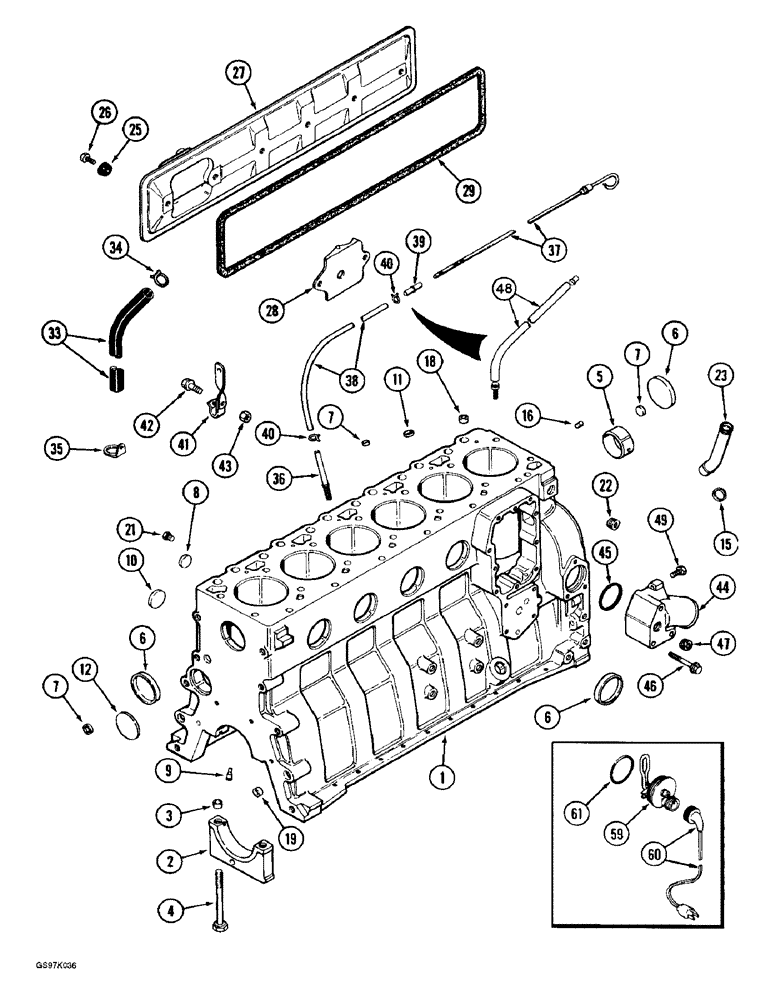

Запчасти Case 888 (2-46) - CYLINDER BLOCK, 6T-590 DIESEL ENGINE (02) - ENGINE

1989061C1

ENGINE ASSEMBLY

- complete, includes all parts except starter, alternator, fan, fan belt, fan drive pulley, air cleaner, muffler and exhaust pipe, (Replaces engine assembly A174289)

1шт.

A174278

ENGINE ASSEMBLY

- complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, 1.1 to 1 ratio, no longer available, order basic engine 1989096C2 (See Note)

1шт.

A174356

BASIC ENGINE

ENGINE ASSEMBLY - basic, remanufactured, North America only, no longer available, order remanufactured engine 1989096C2R

1шт.

AR174356

ENGINE, EXCHANGE

Engine Assembly, Basic, Remanufactured, No Longer Available, Order Remanufactured Engine 1989096C2R

1шт.

AC174356

CORE-ENGINE

Return Part Number, Use This Part Number To Return Engine Assembly For Credit, No Longer Used

1шт.

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY - basic, new, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley

1шт.

1989096C2R

ENGINE, EXCHANGE

Engine, Basic, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly

1шт.

1989096C2C

CORE-ENGINE

Return Part Number

1шт.

J910510

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine new, includes stripped block, piston, connecting rods and bearings, crankshaft and bearings, also order kit J905813

1шт.

JR910510

ENGINE, EXCHANGE

Block Assembly, Engine Short, Remanufactured

1шт.

JC910510

CORE-ENGINE

Return Part Number, Engine Short Block, Use This Number To Return Block For Credit

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped block, also order kit J905813, Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see Fig. 2-44

1шт.

6

A77782

PLUG

- expansion, 58 mm OD

6шт.

7

J900956

PLUG

- expansion, 18 mm OD

3шт.

8

23624R1

PLUG

- expansion, 26 mm OD

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, no longer available as a kit, order components, Includes: Ref. 9 - 22

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

41-3038

PLUG,Exp, 2 3/8"

(Welch) (60 mm OD) Exp, 2 3/8"

1шт.

15

A77439

PLUG

- expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

22

A77429

PLUG

- hex socket, 1/2-14 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

- cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

4шт.

27

J927913

COVER

- tappet (Replaces cover J911822)

1шт.

28

J907586

BAFFLE

- tappet cover

1шт.

29

J928832

GASKET

- tappet cover (Replaces gaskets J904776 and J907617)

1шт.

33

J918612

TUBE,360.00 mm

Breather, Replaces hose J906593 360.00 mm

1шт.

34

J904230

CLAMP,25.4mm

- spring, hose

1шт.

35

J909670

CLIP

- retaining

1шт.

36

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick

1шт.

37

J907712

DIPSTICK

- engine oil

1шт.

38

J279238

TUBE

- dipstick flex, if used (Replaces tube J905799)

1шт.

39

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil dipstick tube, if used

1шт.

40

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose, oil dipstick tube, if used

2шт.

41

J905804

BRACKET

BRACE - tube

1шт.

42

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

1шт.

43

825-1408

NUT,M8, Cl 8

(Replaces nut J900240) M8, Cl 8

1шт.

44

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 mm - 1.50 x 75 mm, grade 10.9

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-14 inch PT

1шт.

48

J918384

TUBE

- oil gauge (Replaces tube J905799, end J905802 and clamp 214-103, Refs. 38 - 40)

1шт.

49

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

1шт.

196803A1

KIT

- heater, engine block (Replaces kit A77634), Includes: Ref. 59 and 60

1шт.

59

NSS

NOT SOLD SEPARAT

ELEMENT - heater, order kit 196803A1, block

1шт.

60

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

61

J910517

O-RING

- heater sealing, block

1шт.
