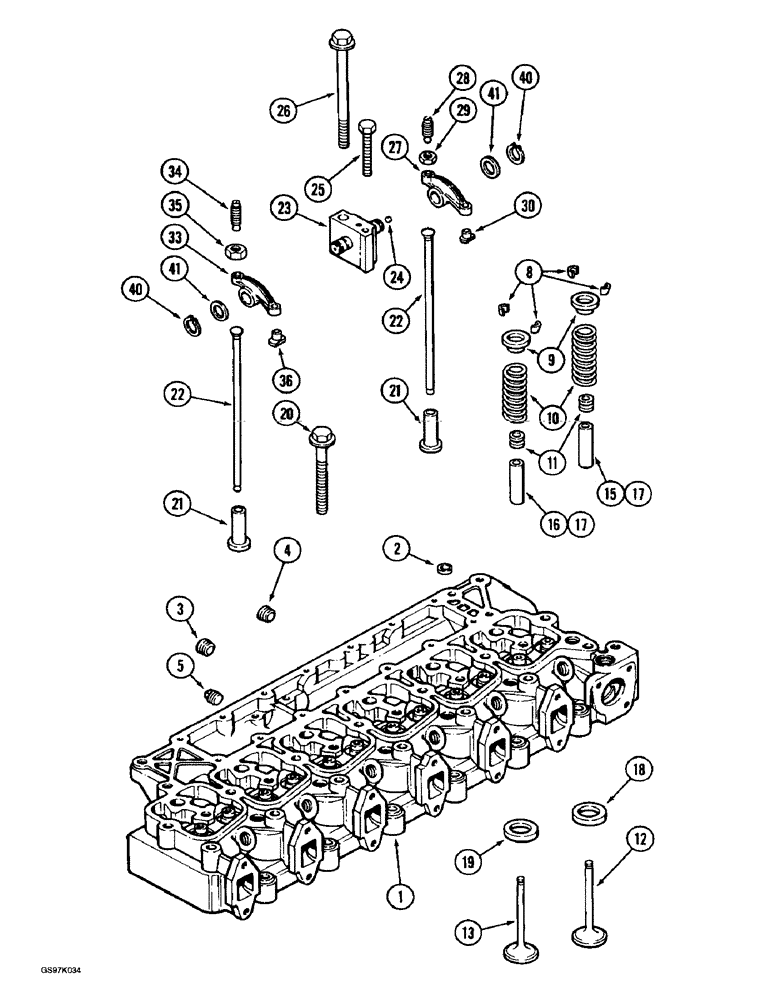

Запчасти Case 888 (2-42) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 DIESEL ENGINE (02) - ENGINE

JR910276

HEAD

ASSEMBLY - cylinder, remanufactured, North America only, no longer available, order new assembly J910276, Includes: Ref. 1 - 13

1шт.

JC910276

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head for credit, Includes: Ref. 1 - 13

1шт.

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, for use with 17 mm nozzles, Includes: Ref. 1 - 13

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 and 3

1шт.

2

A77783

PLUG

- expansion, 21 mm OD (Replaces plug J902606)

5шт.

J909403

BUSHING

SLEEVE - cylinder head, if used

1шт.

3

A77429

PLUG

- hex socket pipe, 1/4-18 inch PT

5шт.

4

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

5

A77505

PLUG

- hex socket pipe, 1/2-18 inch PT

1шт.

8

J900250

SCREW

KEEPER - valve

24шт.

9

J900299

RETAINER

- valve spring

12шт.

10

J926700

VALVE SPRING

SPRING - valve (Replaces valve J900276)

12шт.

11

J901097

SEAL

- valve

12шт.

12

J920867

VALVE

- intake (Replaces valve J901117)

6шт.

13

J920868

VALVE

- exhaust (Replaces valve J901607)

6шт.

15

J904408

GUIDE

- valve, intake, 14 mm OD, service repair only

6шт.

16

J904409

GUIDE

- valve, exhaust, 14 mm OD, service repair only

6шт.

17

J906206

GUIDE

- valve, intake and exhaust, 11 mm OD, service repair only

12шт.

18

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

19

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

20

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - hex flange, 70 mm long (Replaces bolt J903938)

6шт.

20

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- hex flange, 120 mm long (Replaces bolt J903939)

14шт.

21

J931623

TAPPET

- valve, push rod (Replaces tappet J907240)

12шт.

22

J923262

PUSH ROD

ROD - push, rocker arm (Replaces rod J904679)

12шт.

23

J910814

SUPPORT

SHAFT ASSEMBLY - with support, rocker arm, Includes: Ref. 24

6шт.

24

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

25

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

26

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - hex flange, 180 mm long, rocker arm and cylinder head (Replaces bolt J903940), Includes: Ref. 28 - 30

6шт.

27

J910811

ROCKER

ARM ASSEMBLY - rocker, intake

6шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

30

NSS

NOT SOLD SEPARAT

INSERT - arm, order arm assembly

1шт.

33

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 34 - 36

6шт.

34

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

36

NSS

NOT SOLD SEPARAT

INSERT - arm, order arm assembly

1шт.

40

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

41

J900245

WASHER

- thrust, rocker arm

12шт.
