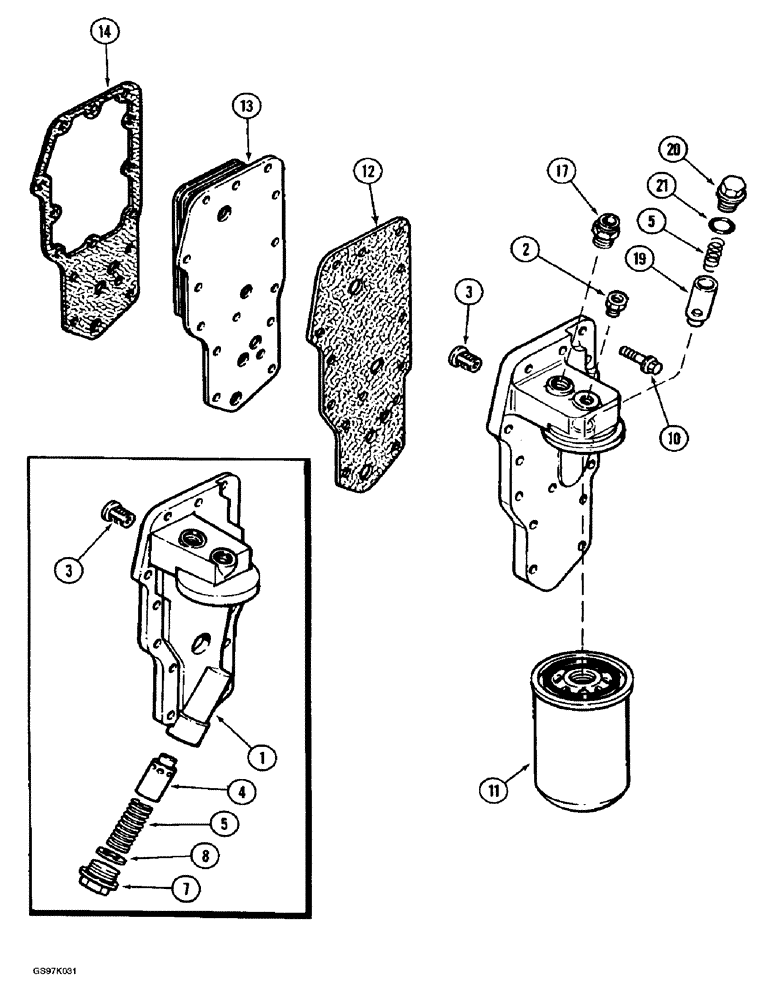

Запчасти Case 888 (2-36) - OIL FILTER AND COOLER, 6T-590 DIESEL ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD - filter and cooler

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-17 inch PT

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure

1шт.

5

J903261

SPRING

- compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

7

J904386

PLUG

- pipe, valve

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 35 mm

14шт.

11

J908615

FILTER

- engine oil

1шт.

12

J929792

GASKET,1.2mm Thk

- filter head (Replaces gaskets J912532 and J918257)

1шт.

13

J921558

COOLER

CORE - cooler, oil (Replaces core J911940)

1шт.

14

J942914

GASKET

- cooler core (Replaces gaskets J914387 and J918256)

1шт.

J915766

KIT

- oil cooler cover, engine serial number 44257900 and after, also includes Ref. 3, no longer available as a kit, order components, Includes: Ref. 16 - 21

1шт.

16

J918954

HEAD

- filter and cooler (Replaces head J915243)

1шт.

17

J909355

ADAPTER

- filter head

1шт.

19

J914084

VALVE

PLUNGER - regulator, pressure

1шт.

20

J915787

PLUG

- pipe

1шт.

21

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Breather tube (Replaces J909397) -115, 70 Duro, .674" ID x .103" Thk

1шт.
