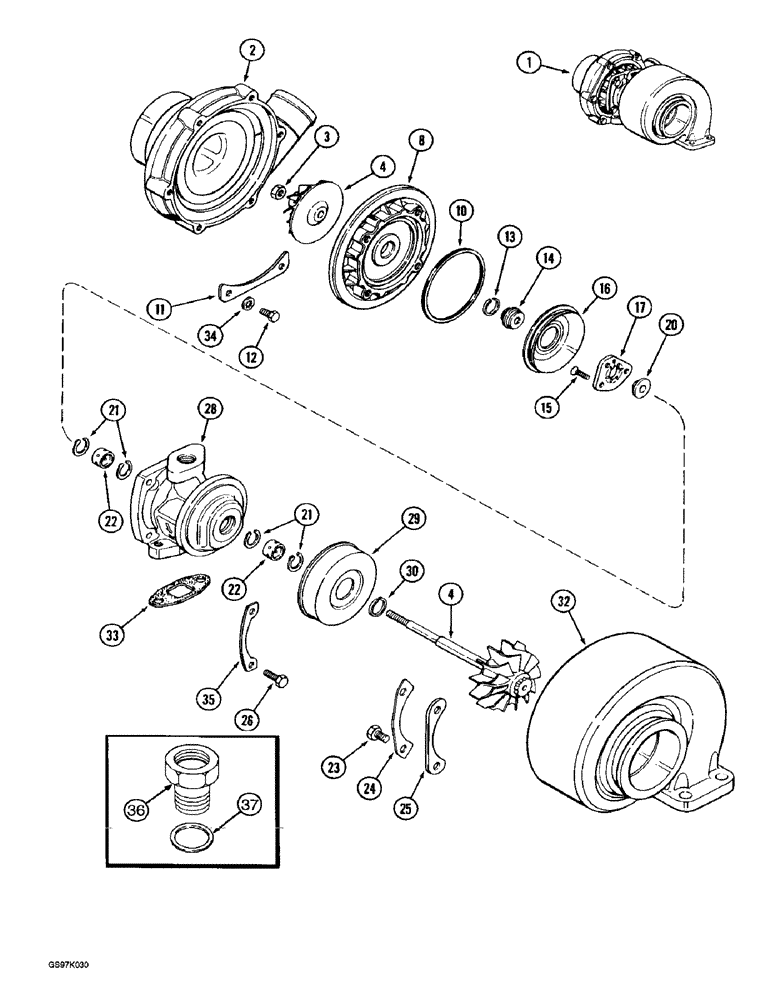

Запчасти Case 888 (2-34) - TURBOCHARGER, 6T-590 DIESEL ENGINE (02) - ENGINE

1

JR802289

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J919113

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, also order adapter J919687 and O-ring 238-5013 (Replaces turbocharger assembly J907028), Includes: Ref. 2 - 35

1шт.

1

JR802289

REMAN-TURBOCHARGER

Turbocharger - remanufactured, component parts do not apply to the remanufactured assembly (Replaces remanufactured turbocharger JR907028)

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number\r\n - use this part number to return turbocharger core for credit (Replaces return number JC907028)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of turbocharger overhaul P/N J545652.

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of turbocharger overhaul P/N J545652.

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - diffuser clamping

3шт.

12

NSS

NOT SOLD SEPARAT

BOLT - hex lock, includes washer

6шт.

Part of turbocharger overhaul P/N J545652.

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of turbocharger overhaul P/N J545652.

1шт.

14

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - flat head special

3шт.

Part of turbocharger overhaul P/N J545652.

1шт.

16

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of turbocharger overhaul P/N J545652.

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap retaining

4шт.

Part of turbocharger overhaul P/N J545652.

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of turbocharger overhaul P/N J545652.

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - plate retaining

4шт.

Part of turbocharger overhaul P/N J545652.

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of turbocharger overhaul P/N J545652.

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT - hex lock, includes washer

1шт.

Part of turbocharger overhaul P/N J545652.

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

Part of turbocharger overhaul P/N J545652.

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil drain

1шт.

Part of turbocharger overhaul P/N J545652.

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - lock

6шт.

Part of turbocharger overhaul P/N J545652.

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

Part of turbocharger overhaul P/N J545652.

1шт.

36

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 37

1шт.

37

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Ref. 3, 10, 12, 13, 15, 17, 21 - 24, 26, 30 and 33 - 35

1шт.
