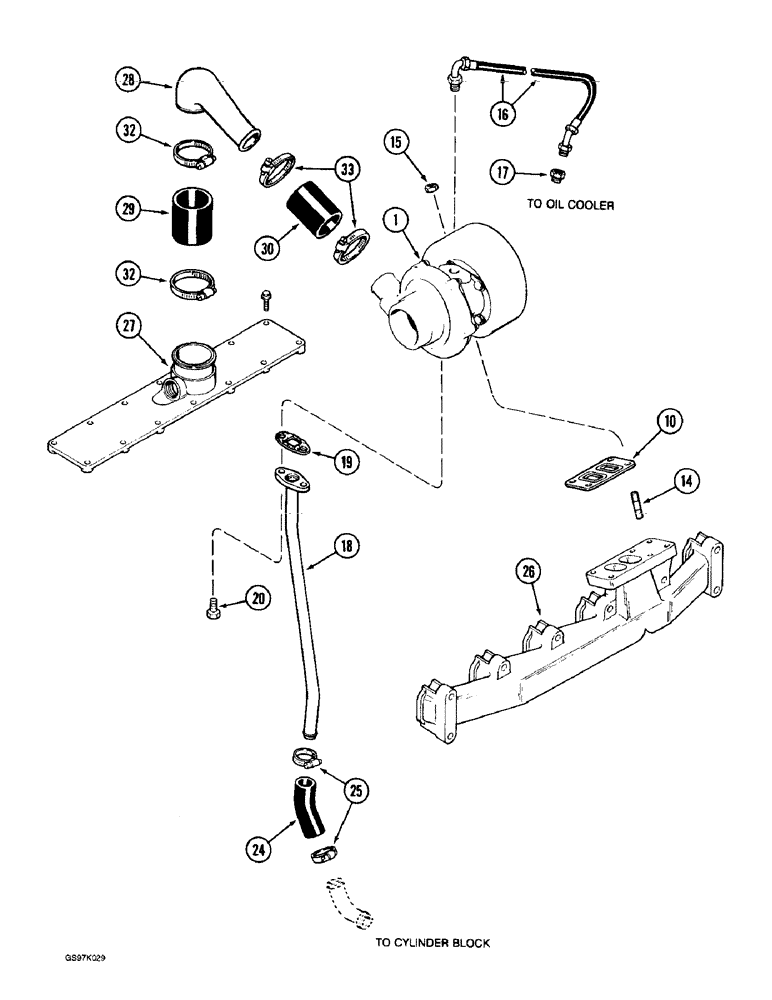

Запчасти Case 888 (2-32) - TURBOCHARGER SYSTEM, 6T-590 DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - parts list Fig. 2-34

1шт.

10

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

14

J818823

STUD

- turbocharger mounting (Replaces stud J905417)

4шт.

15

J818824

FLANGE NUT

- hex, special, 10 mm - 1.5, turbocharger mounting

4шт.

16

J918562

HOSE

- oil supply, turbocharger

1шт.

17

A77457

FITTING

CONNECTOR - female hex, drain tube to filter hose

1шт.

18

J918579

TUBE

- oil drain (Replaces tube J905354)

1шт.

19

J928919

GASKET

- turbocharger oil drain tube (Replaces gasket J914388)

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

24

J931970

HOSE,22.22 mm ID x 76.20 mm

Oil Drain, Replaces J903745 22.22 mm ID x 76.20 mm

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Collar #16, 0.81/1.50 Type F Worm

2шт.

26

J931747

MANIFOLD

- exhaust, see Fig. 2-30

1шт.

27

REF

INSTRUCTION

COVER - intake manifold, see Fig. 2-30

1шт.

28

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

TUBE - air intake

1шт.

29

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube (Replaces hose J904422)

1шт.

30

J916166

INTAKE AIR HOSE

HOSE - air intake (Replaces hose J901804)

1шт.

32

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose retainer, 52 - 76 mm (2-1/16 - 3 inch) range

2шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33 - 57 mm) range #28, 1.31/2.25 Type F Worm

2шт.
