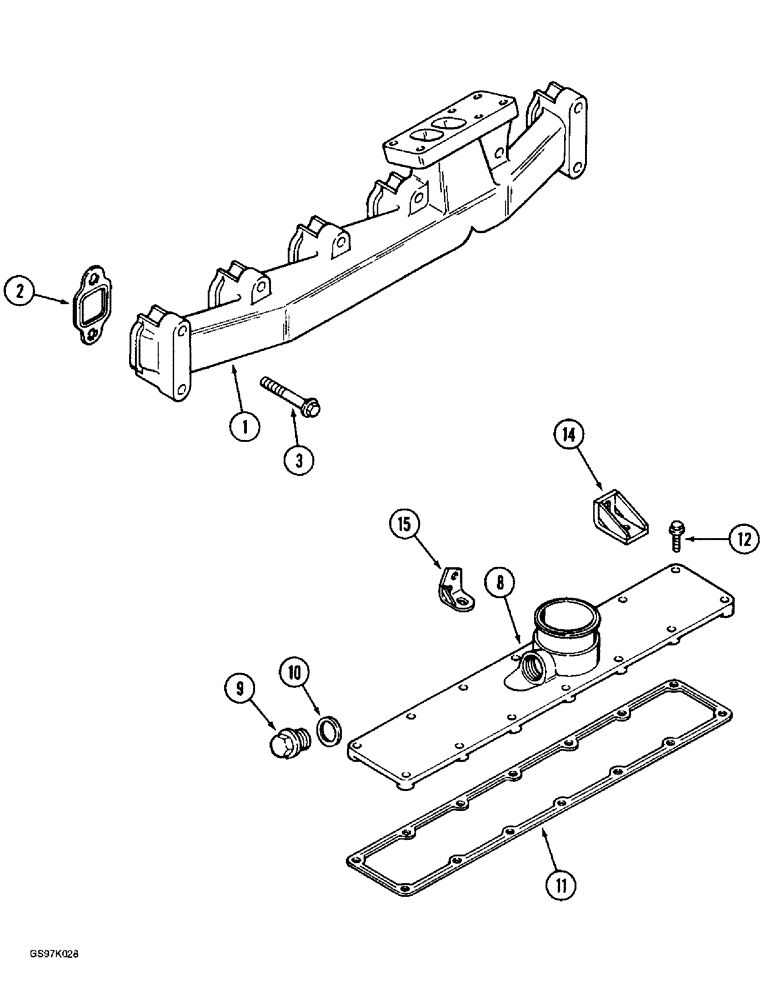

Запчасти Case 888 (2-30) - MANIFOLDS, 6T-590 DIESEL ENGINE, EXHAUST (02) - ENGINE

1

J931747

MANIFOLD

- exhaust (Replaces manifold J901683)

1шт.

2

J905443

MANIFOLD GASKET

- mounting, manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 mm - 1.50 x 65 mm, grade 10.9

12шт.

A77418

KIT

- intake manifold, no longer available, order components, Includes: Ref. 8 - 10

1шт.

8

J904862

COVER

- intake manifold

1шт.

9

J907185

PLUG

- manifold, intake

1шт.

10

J906773

WASHER

- sealing, plug, intake

1шт.

11

J914029

GASKET

- intake cover

1шт.

12

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold (Replaces bolt J904341) Hex Flg Hd, M8 x 1.25 x 25

14шт.

14

A77494

BRACKET

ASSEMBLY - fuel line, see parts list Fig. 3-08, intake

2шт.

15

A77529

BRACKET

ASSEMBLY - fuel line, see parts list Fig. 3-08, intake

2шт.
