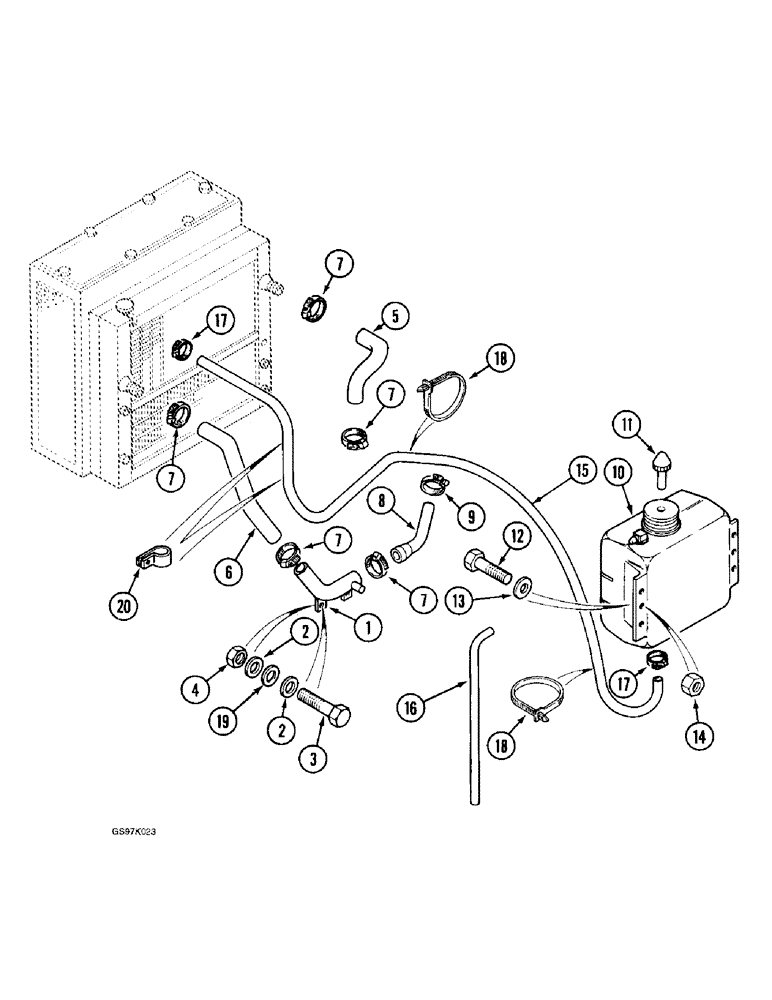

Запчасти Case 888 (2-20) - COOLANT RECOVERY SYSTEM, P.I.N. 15576 THRU 15633, P.I.N. 106803 THRU 106808 (02) - ENGINE

1

P3950193

MANIFOLD

PIPE - radiator hose to engine hose

1шт.

2

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

3

P433805

SCREW

BOLT - hex, 10 mm x 60 mm

2шт.

4

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

5

P6631957

LARGE HOSE

HOSE -, Serial Range: pipe-engine

1шт.

6

P6631959

LARGE HOSE

HOSE - radiator, lower

1шт.

7

P136902

COLLAR CLAMP

CLAMP - hoses

5шт.

8

P6631958

LARGE HOSE

HOSE - radiator, upper

1шт.

9

P36935

COLLAR CLAMP

CLAMP -, Serial Range: hose-engine

1шт.

10

A184395

RESERVOIR

BOTTLE - coolant recovery

1шт.

11

A184079

CAP

- recovery bottle (Replaces cap P3037433)

1шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

13

P35001

WASHER

- flat, 6 mm

4шт.

14

P234513

SAFETY NUT

NUT- hex, self-locking, 6 mm

4шт.

15

REF

INSTRUCTION

HOSE - radiator overflow, 2200 mm (86-5/8 inch) long, cut from bulk hose P1103638 below

1шт.

16

REF

INSTRUCTION

HOSE - recovery bottle overflow, 921 mm (36-1/4 inch) long, cut from bulk hose P1103638 below

1шт.

17

P36951

COLLAR

CLAMP - overflow hoses

2шт.

18

P51946

CLAMP

STRAP - tie, overflow hose, 257 mm (10-1/8 inch) long

1шт.

19

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

20

P51961

CLAMP

- radiator overflow hose

2шт.

P1103638

LARGE HOSE

HOSE - bulk, sold by the meter

1шт.
