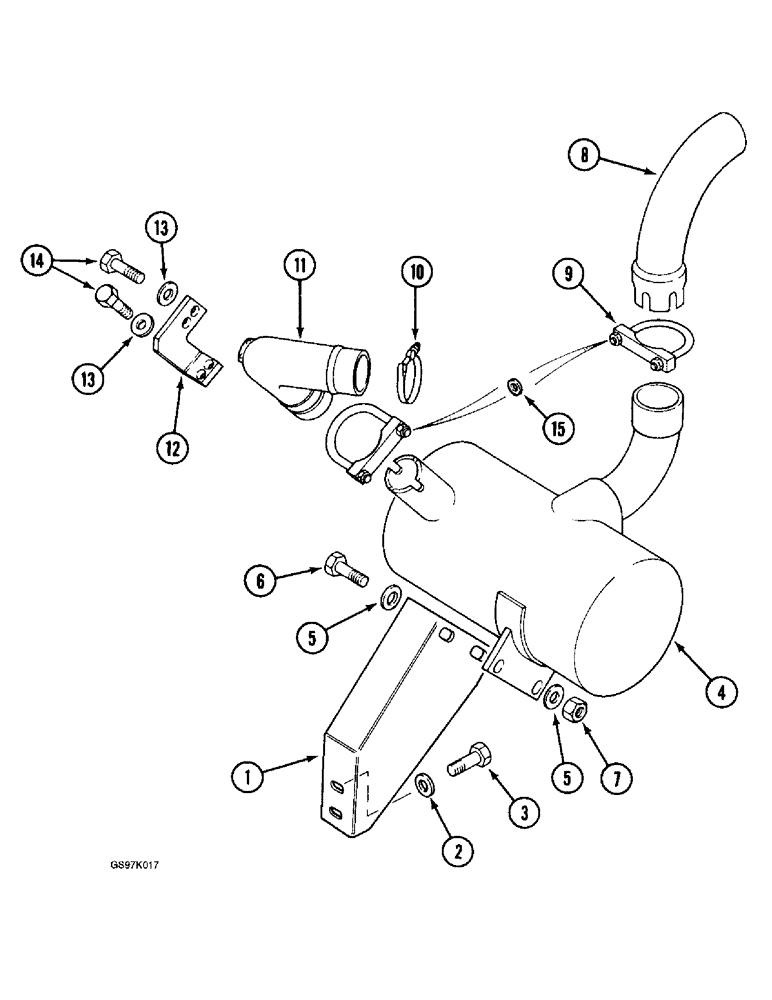

Запчасти Case 888 (2-08) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

P7628274

SUPPORT

BRACKET - mounting, muffler to engine (Replaces bracket P7428234)

1шт.

2

P3528793

WASHER

SPACER - bolt, 8 mm thick

2шт.

3

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

2шт.

4

P3841443

MUFFLER

- engine exhaust

1шт.

5

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

6

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

2шт.

7

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

8

P3950122

TUBE

PIPE - muffler extension

1шт.

9

P3036956

CLAMP

- muffler to muffler extension pipe and adapter

2шт.

10

A170467

CLAMP,72mm ID

- adapter to turbocharger (Replaces clamp P3036950)

1шт.

11

P1737049

ELBOW

ADAPTER -, Serial Range: muffler-turbocharger

1шт.

12

P5125664

PLATE

BRACKET - mounting, Serial Range: adapter-engine

1шт.

13

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

14

P933890

SCREW

BOLT - hex, 10 mm x 30 mm, full thread

4шт.

15

P35002

WASHER

SPACER - clamp

4шт.
