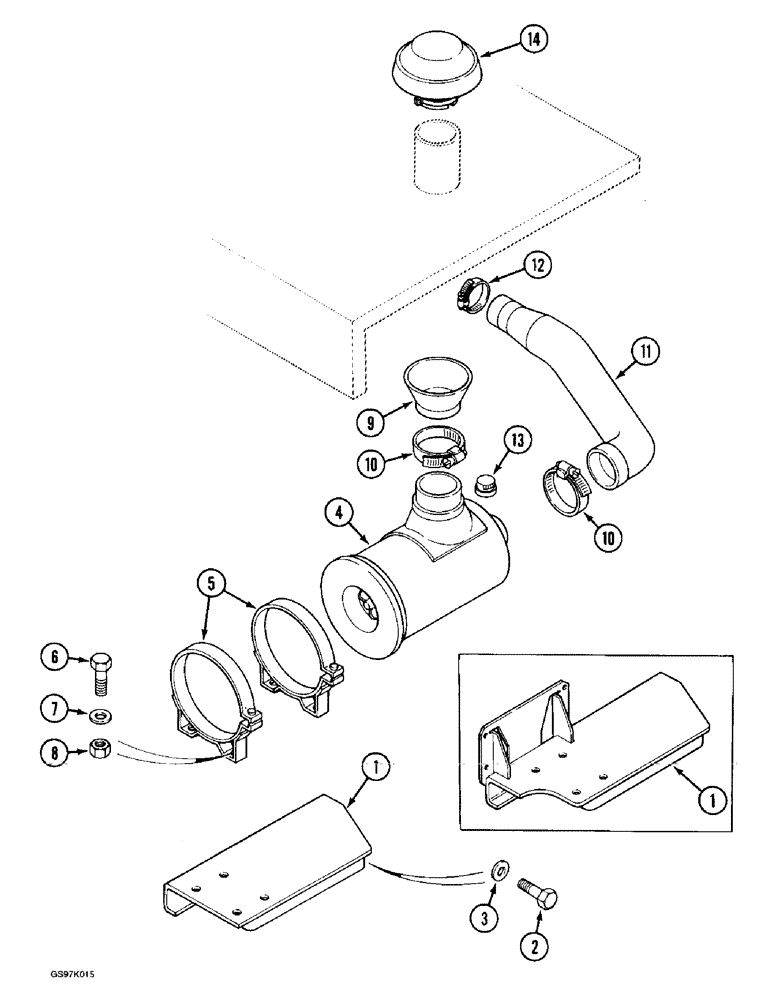

Запчасти Case 888 (2-04) - AIR INTAKE PARTS (02) - ENGINE

1

P7128288

SUPPORT

BRACKET - air cleaner mounting, Serial Range: 15401-15633

1шт.

1

P7128288

SUPPORT

BRACKET - air cleaner mounting, Serial Range: 106801-106808

1шт.

1

P7828216

SUPPORT

BRACKET - air cleaner mounting, Start Serial: 15634

1шт.

1

P7828216

SUPPORT

BRACKET - air cleaner mounting, Start Serial: 106809

1шт.

2

P33873

SCREW

BOLT - hex, 12 mm x 35 mm

2шт.

3

P4328797

WASHER

SPACER - bolt, 8 mm thick

2шт.

4

P1950589

AIR CLEANER

CLEANER ASSEMBLY - air, engine, parts list Fig. 2-06

1шт.

5

P1036911

CLAMP

BAND - air cleaner

2шт.

6

P933890

SCREW

BOLT - hex, 10 mm x 30 mm, full thread

4шт.

7

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

8

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

9

P8846036

SEAL

- air, Serial Range: cleaner-hood

1шт.

10

P136922

CLAMP

- air cleaner to seal (Replaces clamp P136901)

2шт.

11

P6631942

LARGE HOSE

HOSE - air, Serial Range: cleaner-turbocharger

1шт.

12

P136922

CLAMP

- hose to turbocharger (Replaces clamp P1236903)

1шт.

13

1983640C1

RESTRICTION SWITCH

SWITCH - air restriction indicator (Replaces senders P2141684 and P5837749)

1шт.

14

P2340496

CAP

COVER - air cleaner (Replaces cover P740431)

1шт.
