(5-16) - TRACK CHAIN, LINKS AND PINS

Запчасти Case 888 (5-16) - TRACK CHAIN, LINKS AND PINS (11) - TRACKS/STEERING

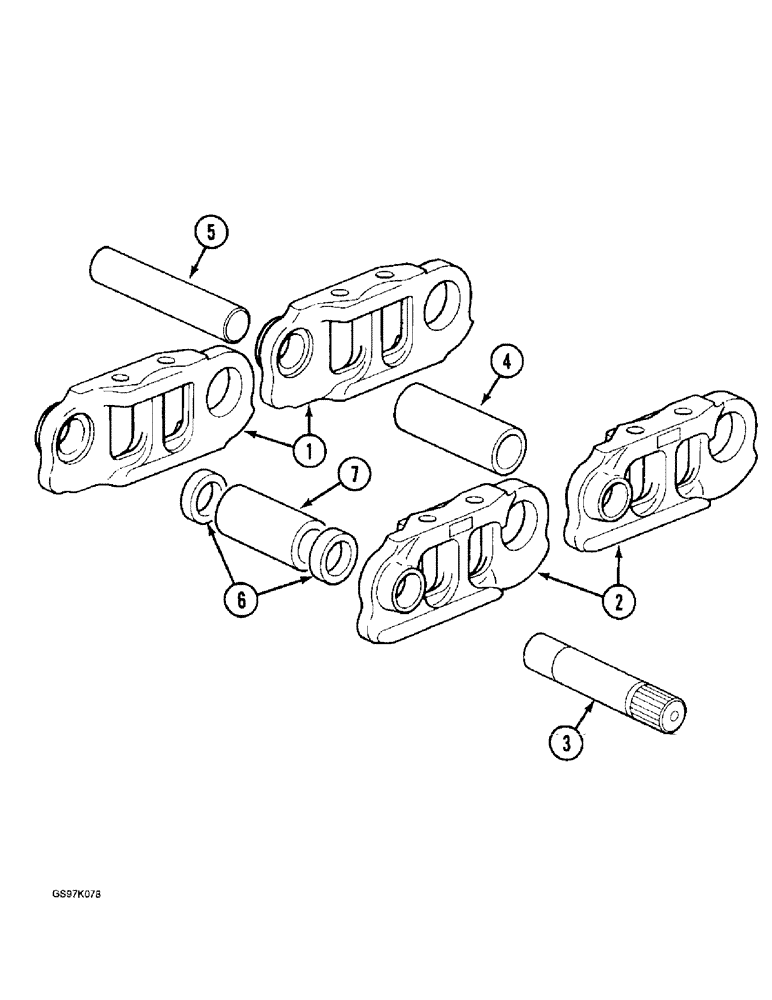

Схема запчастей Case 888 - (5-16) - TRACK CHAIN, LINKS AND PINS (11) - TRACKS/STEERING
7
6
5
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1642338

CHAIN (CE)

CHAIN ASSEMBLY - track, 47 link, Intertrac identification, Includes: Ref. 1 - 7

2шт.

1

P1542358

LINK

- track, right-hand

47шт.

2

P1542355

LINK

- track, left-hand

47шт.

3

P1627853

PIN

- master, order P6427812, link P1542358 and link P1542355

1шт.

4

P829383

SPACER

BUSHING - standard pin

46шт.

5

P3627876

PIN

- standard

46шт.

6

P2229315

SPACER

- master pin

2шт.

7

P829382

SPACER

BUSHING - master pin

1шт.
