(2-02) - ENGINE MOUNTING AND ADAPTING PARTS

Запчасти Case 888 (2-02) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

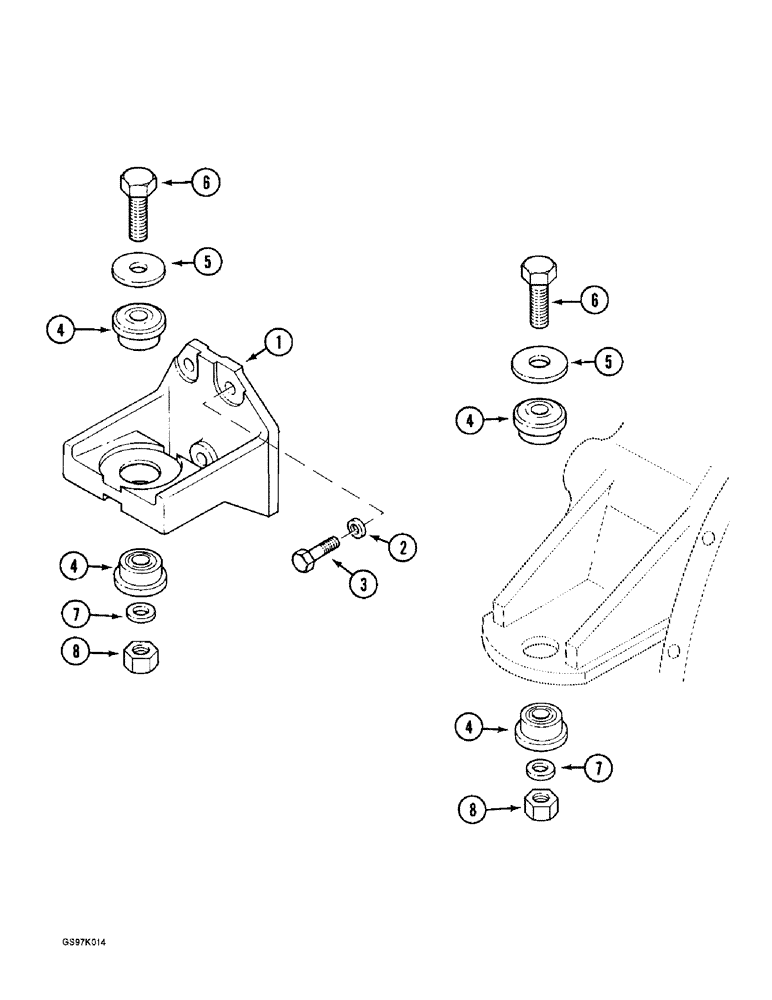

Схема запчастей Case 888 - (2-02) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE
2
1
4
7
6
8
5
5
8
4
3
4
4
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P2646130

FOOT

SUPPORT - engine front (Replaces support P6828210)

2шт.

2

P4328797

WASHER

SPACER - bolt, 8 mm thick

4шт.

3

P33887

SCREW

BOLT - hex, 12 mm x 45 mm

4шт.

4

P4441473

SUPPORT

INSULATOR - rubber, side engine mounting (Replaces insulator R49921)

8шт.

5

P2745406

WASHER

- rubber insulator mounting, 18 mm x 70 mm x 5 mm

4шт.

6

P33855

SCREW

BOLT - hex, 16 mm x 90 mm

4шт.

7

P3528790

WASHER

SPACER - bolt, 11 mm thick

4шт.

8

P34562

SAFETY NUT

NUT - hex, self-locking, 16 mm

4шт.
