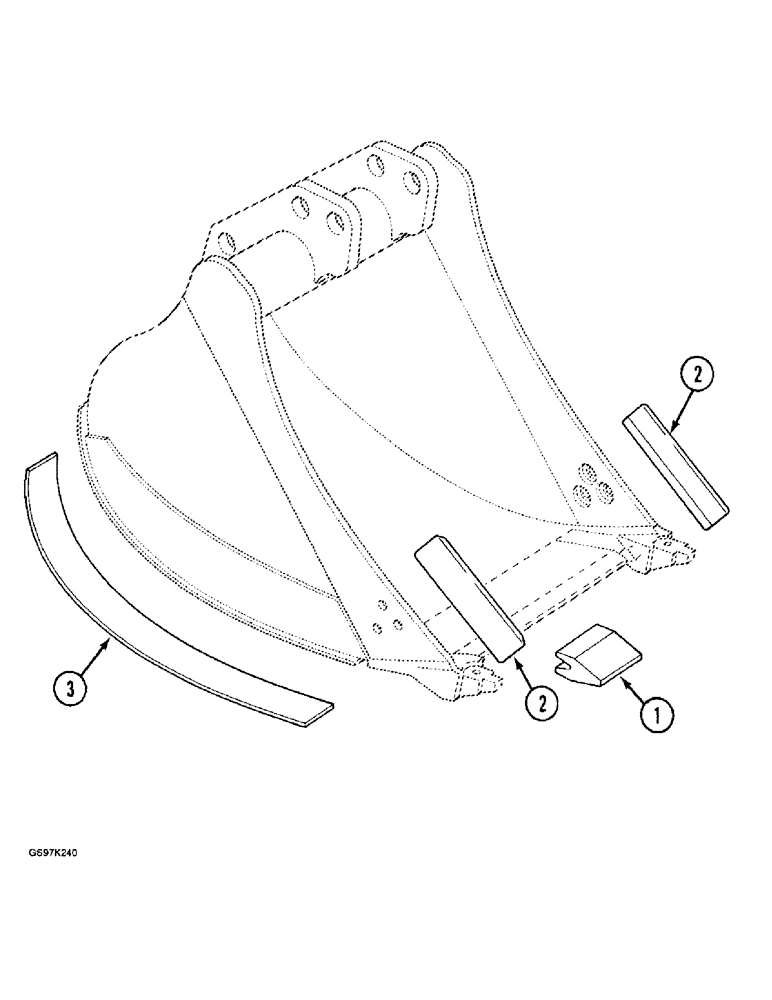

Запчасти Case 888 (9G-12) - BUCKET REINFORCEMENT PARTS (09) - CHASSIS

1

P2346175

PLATE

REINFORCEMENT - cutting edge, two used with 600 mm (23-5/8 inch) wide buckets, three used with 851 mm (33-1/2 inch) wide and 902 mm (35-1/2 inch) wide buckets, four used with 1200 mm (47-1/4 inch) wide buckets

1шт.

1

P2346174

BLADE

REINFORCEMENT - cutting edge, used with 750 mm (29-1/2 inch) wide buckets

3шт.

1

P2346176

PLATE

REINFORCEMENT - cutting edge, three used with 1000 mm (39-3/8 inch) wide buckets and four used with 1300 mm (51-1/8 inch) wide buckets

1шт.

2

P2346193

PLATE

REINFORCEMENT - cutting edge, side

2шт.

3

P5826696

STIFFENER

REINFORCEMENT - bucket bottom, four used with 1300 mm (51-1/8 inch) wide buckets, two used with all other buckets

1шт.
