(9D-14) - HAND CONTROL VALVE CONSOLE (CONT)

Запчасти Case 888 (9D-14) - HAND CONTROL VALVE CONSOLE (CONT) (09) - CHASSIS

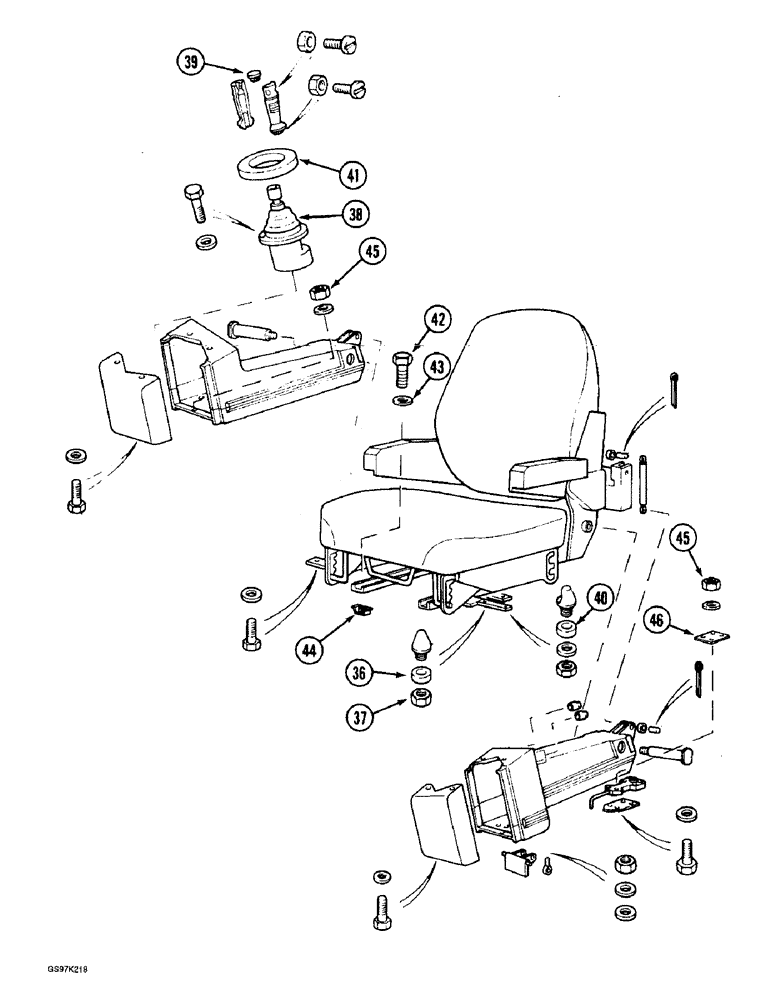

Схема запчастей Case 888 - (9D-14) - HAND CONTROL VALVE CONSOLE (CONT) (09) - CHASSIS
45
42
36
41
38
37
44
46
39
45
40
43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

36

P3528794

WASHER

SPACER - bumper mounting, 6 mm thick

1шт.

37

P34113

NUT

- hex, 8 mm

1шт.

38

P4743324

BLOCK ASSY.

VALVE ASSEMBLY - control, hand, parts list Fig. 8D-12

2шт.

39

P2537472

PLASTIC PLUG

PLUG - control handle

2шт.

40

P34614

WASHER

- flat, 14 mm

1шт.

41

P7230184

PROTECTOR

RING - rubber, hand control valve

2шт.

42

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

4шт.

43

P3528793

WASHER

SPACER - bolt, 8 mm thick

4шт.

44

P1334578

NUT

- hex, 12 mm

4шт.

45

P234513

SAFETY NUT

NUT - hex, 6 mm

6шт.

46

P2023290

LARGE PLATE

PLATE - mounting, lock

1шт.
