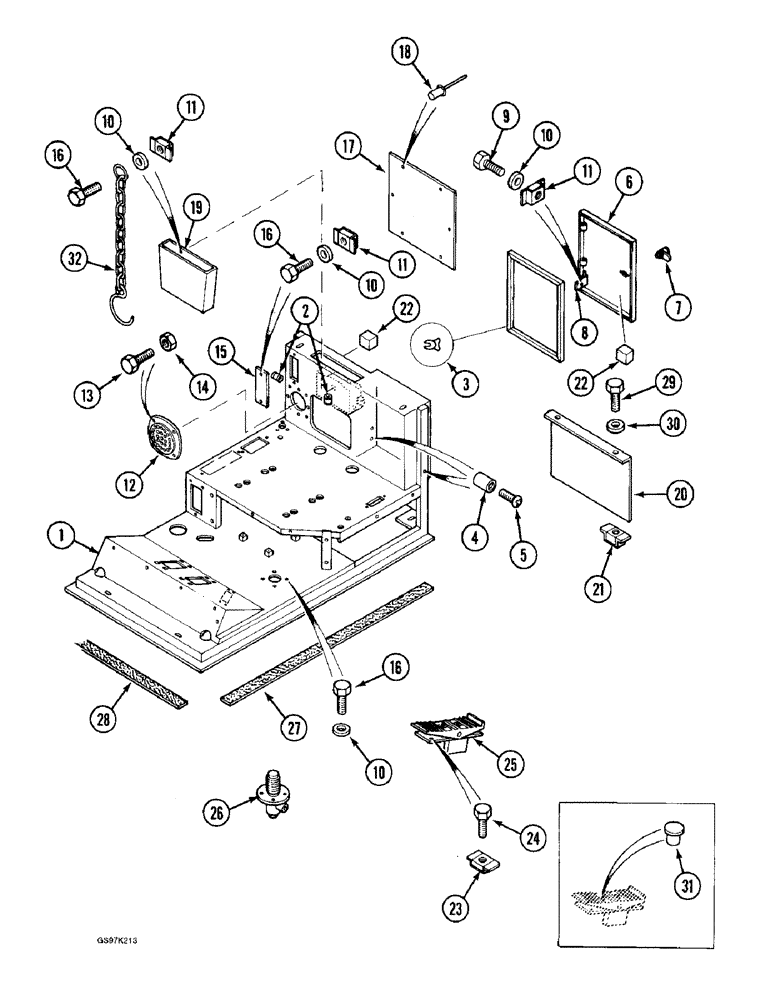

Запчасти Case 888 (9D-04) - OPERATOR COMPARTMENT, ACCESS DOOR AND COVERS, P.I.N. 15401 THRU 15628, P.I.N. 106801 THRU 106806 (09) - CHASSIS

1

P8143875

FLOOR

PLATFORM - mounting, seat and floor plate, includes Ref. 17 and 18

1шт.

2

P1241417

GROMMET

- platform, electircal wiring

2шт.

3

P2047038

WINDOW FRAME

SEAL - access door (Replaces seal P1347094)

1шт.

4

P1329965

STOP

- panel (Replaces stop P1329946)

2шт.

5

P32530

SCREW

- slotted head, 4 mm x 10 mm

2шт.

6

P7043893

DOOR

- access, electrical circuit board

1шт.

7

P1352032

LOCK ASSY

LOCK ASSEMBLY - access door

1шт.

P1352009

KEY

- lock, set of two

1шт.

8

P736695

FIXED HINGE

HINGE - access door

2шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

10

P3528799

WASHER

SPACER - bolt, 4 mm thick

14шт.

11

P1634573

NUT

- square, cage type

8шт.

12

P2340458

SIEVE

GRILLE ASSEMBLY - radio, Includes: Ref. 13 and 14, Start Serial: 15401

1шт.

12

P2340458

SIEVE

GRILLE ASSEMBLY - radio, Includes: Ref. 13 and 14, Start Serial: 106801

1шт.

13

P32428

SCREW

- slotted, 4 mm x 16 mm

4шт.

14

P34107

NUT - hex, 4 mm

4шт.

15

P3122821

HOOD

PLATE - cover, platform

1шт.

16

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

10шт.

17

P2023254

HOOD

COVER - access, platform

1шт.

18

P35418

RIVET

- pop, 8 mm x 17 mm

6шт.

19

P7646231

BOX

- manual

1шт.

20

P4825672

HOOD

BRACKET - support, rear platform

1шт.

21

P1334574

NUT

- retainer, cage type, 6 mm

2шт.

22

REF

INSTRUCTION

SEAL - door, 29 mm (1-1/8 inch) long, cut from bulk seal P3123 below

2шт.

23

P1334571

NUT

- square, cage type, 8 mm

8шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

8шт.

25

P4343360

BLOCK ASSY.

VALVE ASSEMBLY - foot control, parts list Fig. 8D-14

2-3шт.

26

P2843549

PUMP, HYDRAULIC

PUMP ASSEMBLY - foot, control circuit, see Fig 8D-06 or 8D-15 for hydraulic circuit

1шт.

27

REF

INSTRUCTION

SEAL - platform, 1556 mm (61-1/4 inch) long, cut from bulk seal P3128 below

2шт.

Use P3578 adhesive for mounting.

1шт.

28

REF

INSTRUCTION

SEAL - platform, 886 mm (34-7/8 inch) long, cut from bulk seal P3128 below

1шт.

Use P3578 adhesive for mounting.

1шт.

29

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

1шт.

30

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

31

P3037430

PLASTIC PLUG

PLUG - plastic, control pedals, if used

4шт.

32

P2631335

CHAIN (AG)

CHAIN - manual

1шт.

P3123

GASKET

SEAL - bulk, sold by the meter

1шт.

P3128

SEAL

- bulk, sold by the meter

1шт.

Use P3578 adhesive for mounting.

1шт.
