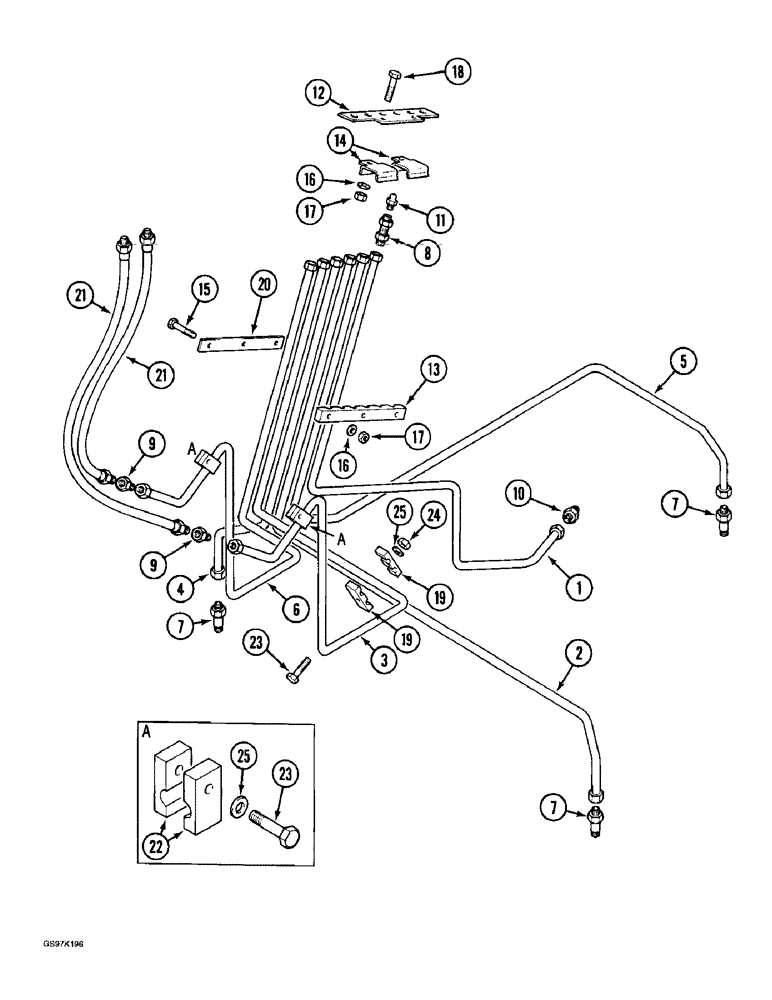

Запчасти Case 888 (8H-04) - LUBRICATION LINES, P.I.N. 15636 AND AFTER, P.I.N. 106810 AND AFTER (08) - HYDRAULICS

1

P7549102

PIPE

TUBE - lubrication, turntable bearing

1шт.

2

P7549103

PIPE

TUBE - lubrication, turntable bearing

1шт.

3

P7449198

PIPE

TUBE - lubrication, left-hand boom cylinder, base end

1шт.

4

P6549089

PIPE

TUBE - lubrication, turntable bearing

1шт.

5

P7449199

PIPE

TUBE - lubrication, turntable bearing

1шт.

6

P7549101

PIPE

TUBE - lubrication, right-hand boom cylinder, base end

1шт.

7

P3237581

UNION

ADAPTER ASSEMBLY - straight

3шт.

P7046042

SEAL

- adapter

1шт.

8

P4837554

UNION

ADAPTER - straight, lubrication tubes to grease fittings

6шт.

9

P3237597

FITTING

ADAPTER - lubrication, Serial Range: hose-tube

8шт.

10

P3237530

UNION

ADAPTER ASSEMBLY - straight

1шт.

P7046042

SEAL

- adapter

1шт.

11

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

6шт.

12

P1323591

LARGE PLATE

BRACKET - tube clamp

1шт.

13

P4620334

SHIN

CLAMP - tube, upper, for six tubes

1шт.

14

P1436963

CLASP

CLIP - harness retaining, 13 - 19 mm (1/2 - 3/4 inch) range

2шт.

15

P733035

SCREW

BOLT - hex, 6 mm x 35 mm, full thread

3шт.

16

P35001

WASHER

SPACER - flat, 6 mm

5шт.

17

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

5шт.

18

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

19

P4420364

SHIN

CLAMP - tube, lower, for two tubes

2шт.

20

P3522835

LARGE PLATE

BRACKET - tube clamp

1шт.

21

P5931961

HOSE

- to boom cylinders at base end, 700 mm (27-9/16 inch) long

2шт.

22

P4620319

SHIN

CLAMP - boom lubrication tubes

4шт.

23

P933818

SCREW

BOLT - hex, 10 mm x 40 mm, full thread

3шт.

24

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

25

P34611

WASHER

SPACER - flat, 10 mm

3шт.
