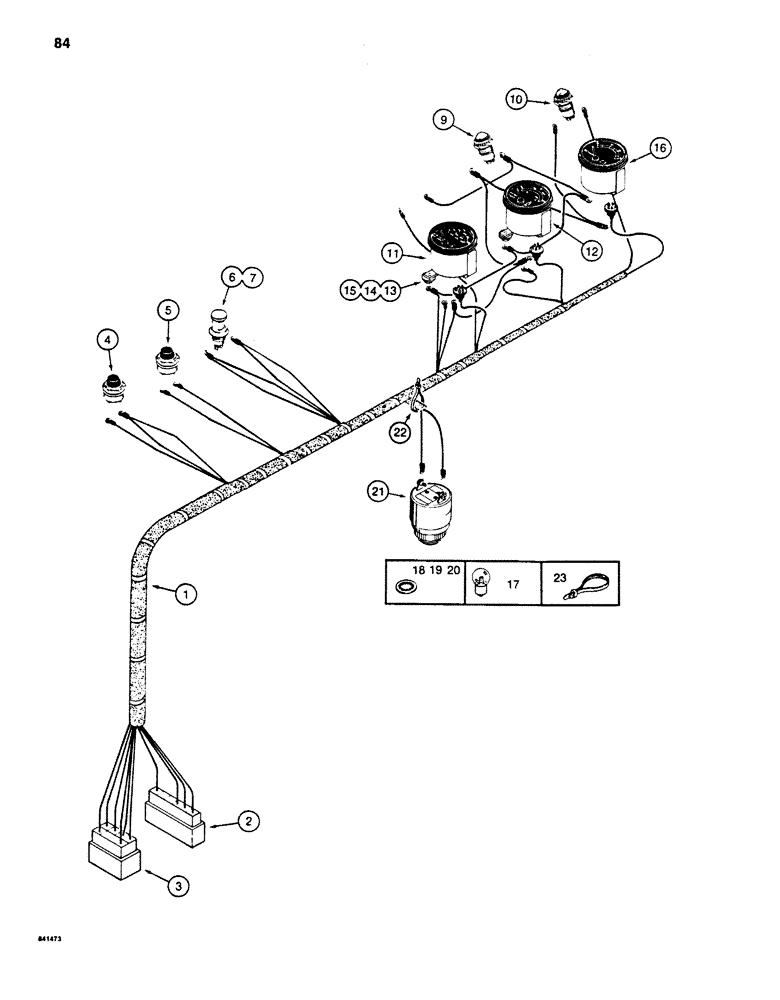

Запчасти Case 880D (084) - ELECTRICAL HARNESS, RIGHT-HAND CONSOLE (06) - ELECTRICAL SYSTEMS

1

S615775

HARNESS

- right-hand console, models with oil pressure gauge, includes Refs. 2 and 3

1шт.

Adopt S618934 harness with Nov. 85 production per ECS #DR0185-060 effective S/N 6280950.

1шт.

1

S618807

HARNESS

- right-hand console, models with low oil pressure warning lamp and buzzer, includes Refs. 2 and 3

1шт.

2

223-170

CONNECTOR, ELEC

CONNECTOR - female, 6 terminals

1шт.

3

223-172

CONNECTOR, ELEC

CONNECTOR - female, 8 terminals

1шт.

4

S241920

SWITCH

- cold start button, if used

1шт.

5

S241920

SWITCH

- horn

1шт.

6

S239151

LIGHT

LAMP - panel

1шт.

7

A25258

BULB

- panel lamp and warning lamps, No. 1829

3шт.

9

S239149

LIGHT

WARNING LAMP - key switch on, models with oil pressure gauge

1шт.

9

S242610

LIGHT

WARNING LAMP - low oil pressure, models with low oil pressure warning lamp and buzzer

1шт.

10

S239148

LAMP

WARNING LAMP - drive brake on

1шт.

11

S239139

GAUGE

- oil pressure

1шт.

12

S239138

GAUGE

- engine temperature

1шт.

13

S108406

RESISTOR

- oil pressure and engine temperature gauges

1-2шт.

14

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1-2шт.

15

129-37

NUT,#10-32

1-2шт.

16

S239336

VOLTMETER

- battery

1шт.

17

S116543

BULB

- gauges and voltmeter, No. 456

2-3шт.

18

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #10

1шт.

19

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #8

1шт.

20

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #6

1шт.

21

S242611

ALARM

BUZZER - low oil pressure, if used

1шт.

22

S73387

CLIP

TIE STRAP - low oil pressure buzzer wire, if used

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
