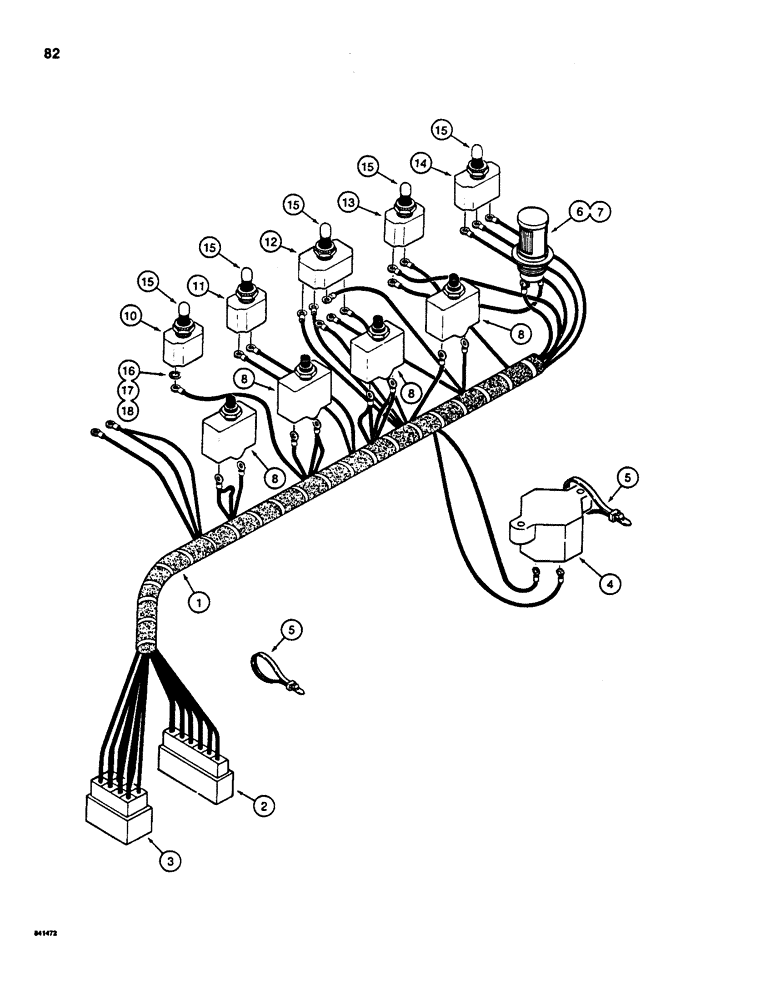

Запчасти Case 880D (082) - ELECTRICAL HARNESS, LEFT-HAND CONSOLE (06) - ELECTRICAL SYSTEMS

1

S615776

HARNESS

- left-hand console, Includes: Ref. 2 and 3

1шт.

Adopt S618938 Harness with Nov.85 Production per ECS #DR0185-060 S/N 6280950.

1шт.

2

223-170

CONNECTOR, ELEC

CONNECTOR - female, 6 terminals

1шт.

3

223-172

CONNECTOR, ELEC

CONNECTOR - female, 8 terminals

1шт.

4

S117267

BREAKER

CIRCUIT BREAKER - windshield wiper

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

S239151

LIGHT

LAMP - panel

1шт.

7

A25258

BULB

- panel lamp, No. 1829

1шт.

8

S115714

BREAKER

CIRCUIT BREAKER - electrical circuits

3-4шт.

10

S88636

IGNITION SWITCH

SWITCH - work lamp, if used

1шт.

11

S91527

SWITCH

- windshield washer, if used

1шт.

12

S117009

SWITCH

- windshield wiper

1шт.

13

S88636

IGNITION SWITCH

SWITCH - panel lamp

1шт.

14

S108079

SWITCH

- drive brake

1шт.

15

S116909

BOOT

- switches

3-5шт.

16

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Switch terminals Int Tooth, #10

1шт.

17

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , Switch terminals Int Tooth, #8

1шт.

18

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Switch terminals Int Tooth, #6

1шт.
