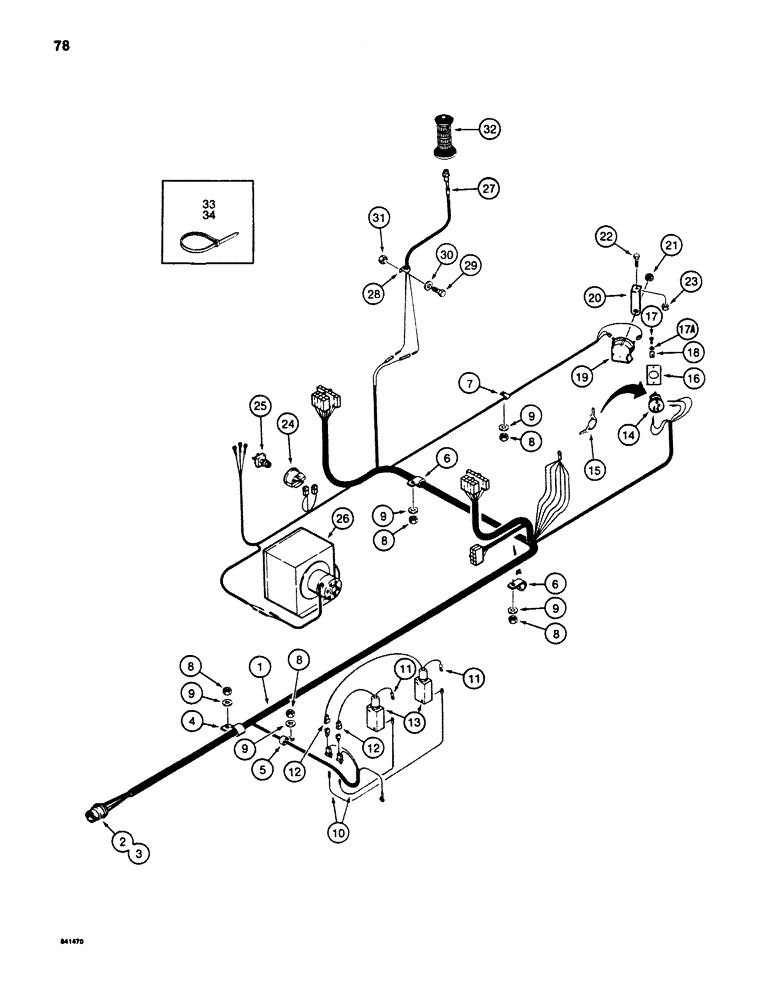

Запчасти Case 880D (078) - ELECTRICAL HARNESS, CAB AND TURNTABLE (06) - ELECTRICAL SYSTEMS

1

S618338

HARNESS

- turntable, Includes: Ref. 2 and 3

1шт.

Adopt S618923 Harness Eff: 11/85 Production on S/N 6280950. Per ECS #DR0185-060.

1шт.

2

S107264

CONNECTION,ELECTRIC

PLUG - electrical, harness, Includes: Ref. 3

1шт.

S107264- THIS IS AN EIGHT PIN RECEPTACLE WITH A RECTANGULAR PATTERN 3 - 2- 3 PINS- IF LOOKING FOR ROUND PATTERN 9 PIN-SEE S120488 USED WITH HARNESS S618923

1шт.

3

S99516

CONTACT

PIN - plug, not shown

8шт.

4

R14668

CLAMP

- harness, rear

1шт.

5

S64985

CLAMP

- wire

1шт.

6

T50103

CLAMP

- harness, front

2шт.

7

A61275

CLIP

CLAMP - horn wire

1шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

5шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

5шт.

10

S238309

DIODE

WIRE ASSEMBLY - diode

1-2шт.

L61053 Switch - ignition

1шт.

S242833 Diode Wire Assy

1шт.

S242820 Diode

1шт.

L115883 Starter Relay

1шт.

S242795 Key Plate

1шт.

131-143 Clip

1шт.

Ref: 10,13 S108413 & 16. Adopt the following per ECS #DR0185-060.

1шт.

11

223-52

FUSE

TERMINAL - wires

1-2шт.

12

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve wires

1-2шт.

13

S237789

VALVE

SOLENOID CONTROL VALVE - parts list Figure 196

1-2шт.

S108413

SWITCH

KEY SWITCH ASSEMBLY - electrical system, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

KEY SWITCH - electrical system

1шт.

15

R30074

SET

KEYS - switch, set of two keys

1шт.

16

S239946

PLATE

- switch mounting

1шт.

17

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - No. 10 - 24 NC x 3/4"

2шт.

17a

F64315

WASHER

- special finishing, No. 10

2шт.

18

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

2шт.

19

D77650

HORN

- electrical

1шт.

20

S203190

BRACKET

- horn mounting

1шт.

21

L30866

LOCK NUT

- horn mounting

1шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

23

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

24

S515551

HOURMETER

- electric

1шт.

25

REF

INSTRUCTION

SWITCH - heater, if used, supplied with heater, see Figure 88 for heater parts list

1шт.

26

S240031

HEATER

- cab, if used, parts list Figure 88

1шт.

27

S242036

SWITCH

AND WIRE - fast hoist

1шт.

28

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- fast hoist switch wire

1шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

30

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

1шт.

31

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

32

S119987

GRIP

- control lever, see Figure 217 for hand lever control

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

34

S73387

CLIP

TIE STRAP - harness, 6 3/4" (171 mm) long

1шт.
