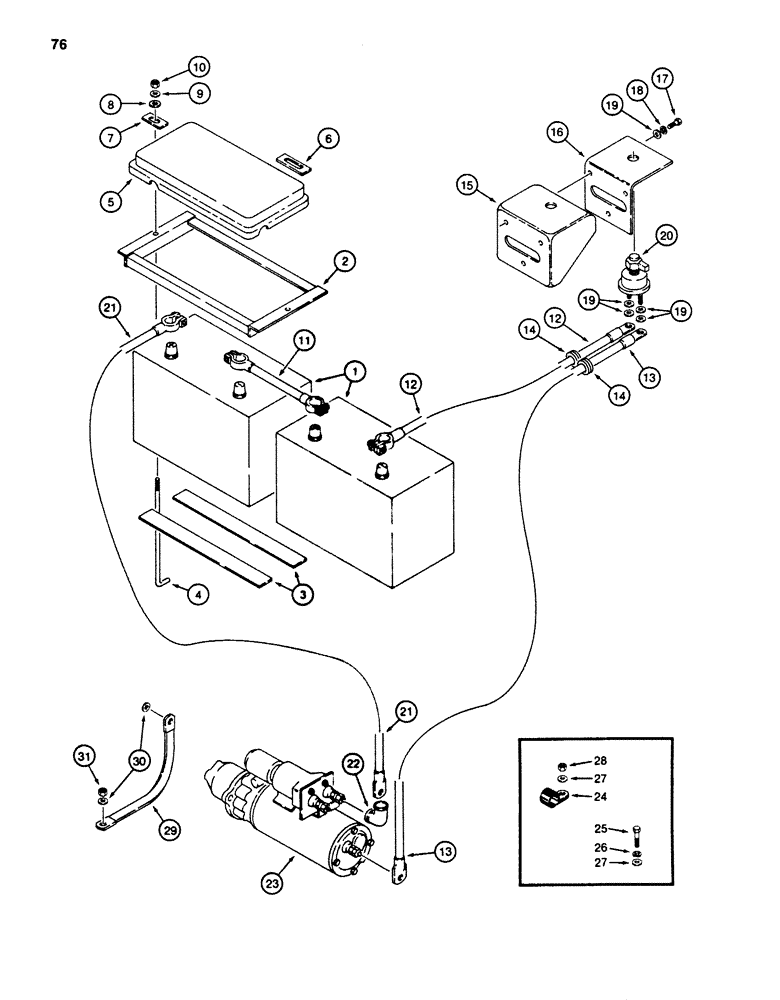

Запчасти Case 880D (076) - BATTERIES, BATTERY MOUNTING, AND CABLES (06) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

- 12 volt

2шт.

Battery replaced by A180406 effective with S/N 6205800 and up. See 1080B Cat. Figure 4-100/4-101 for correct illustration.

1шт.

2

S516909

BRACKET

RETAINER - battery (Replaces S515546 effective with S/N 6205800 and up)

2шт.

3

S117291

STRIP

- rubber

4шт.

4

S75713

STUD

- battery hold down

4шт.

5

S516809

COVER ASSY

COVER - battery

2шт.

6

S120108

STRIP

TAB - cover mounting, center

1шт.

7

S120085

STRIP

TAB - cover mounting, ends

2шт.

8

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

11

S242728

CABLE

- battery to battery, 8" (203 mm) long (Replaces S242533 effective with S/N 6205800 and up)

1шт.

12

S242729

CABLE

- battery to switch, negative, 28" (711 mm) long (Replaces S242028 effective with S/N 6205800 and up)

1шт.

13

S242493

CABLE ASSY.

CABLE - switch to starter, negative, 130" (3302 mm) long

1шт.

14

D51643

GROMMET

-, Serial Range: cables-cab

2шт.

15

S516840

MOUNTING PARTS

COVER - bracket, plastic

1шт.

16

S242564

ANGLE

BRACKET - metal

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

195-525

WASHER,3/8", SAE

- flat, 3/8"

7шт.

20

D75385

IGNITION SWITCH

SWITCH - battery disconnect

1шт.

21

S242730

CABLE

- battery to starter solenoid, positive, 114" (2896 mm) long (Replaces S242287 effective with S/N 6205800 and up)

1шт.

22

S115407

BOOT

- rubber, positive cable at starter solenoid

1шт.

23

REF

INSTRUCTION

STARTER - engine, parts list Figures 68 and 72

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- battery cables

10шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clamp at battery box Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

28

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16NC, plated

3шт.

29

S229640

CABLE

STRAP - ground, Serial Range: engine-turntable

1шт.

30

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

31

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16NC, plated

1шт.

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

M12-1.75 x 20, ground cable mounting

1шт.

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Ground cable mounting M13.5 x 24 x 2.5

1шт.

892-1112

LOCK WASHER,M12

ground cable mounting M12

1шт.
