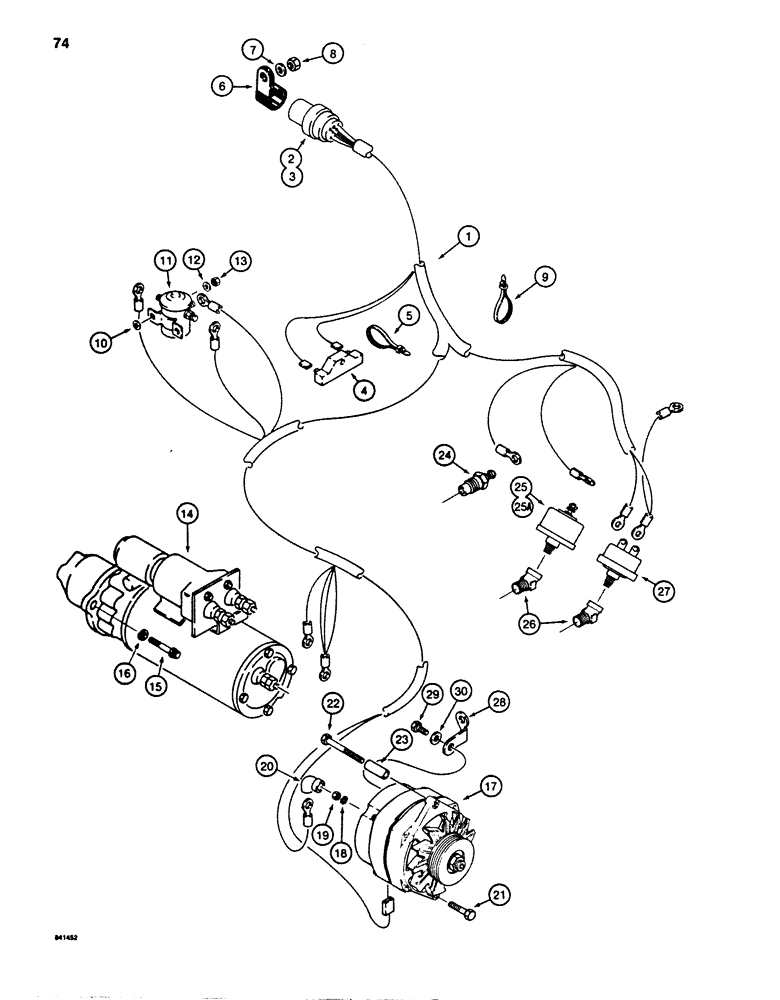

Запчасти Case 880D (074) - ENGINE ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

S617364

HARNESS

- engine, Includes: Ref. 2 and 3

1шт.

Adopt S618924 Harness-eng eff: Nov/85 Production per ECS #DR0185-060 S/N 6280950.

1шт.

2

S107265

PLUG

CONNECTOR - harness, Includes: Ref. 3

1шт.

Adopt a S120252 connector to use with S618924 Harness.

1шт.

3

S99513

CONTACT

- connector, female, not shown

1шт.

Contacts - connectors use as follows per Print of S618924:

1шт.

S107173 - 1K S99512 - 21P S12481 - Rest

1шт.

4

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- alternator

1шт.

5

R38237

STRAP

TIE STRAP -, Serial Range: resistor-harness

1шт.

6

R14668

CLAMP

- engine harness

1шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

11

S240588

SOLENOID SWITCH

RELAY - starter

1шт.

Might be different along with harness change - if dealer says it looks different try 1546542C1 shown in 1080 book fg 100 #33 pd

1шт.

12

195-516

WASHER,#12

- flat, 1/4", plated

2шт.

13

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.

14

REF

INSTRUCTION

STARTER - engine, parts list Figures 68 - 72

1шт.

15

866-10040

12 PT SCREW,Flg, M10 x 40mm, Cl 12.9

BOLT - Ferry head , 10 mm - 1.50 x 40 mm (12.9), plated

3шт.

16

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

3шт.

17

REF

INSTRUCTION

ALTERNATOR - parts list Figure 66

1шт.

18

892-1106

LOCK WASHER,M6

plated M6

1шт.

19

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - l, plated

1шт.

20

S64612

BOOT

- rubber, at alternator

1шт.

21

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- special, alternator mounting

1шт.

22

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- Hex, M10 x 100, 8.8

1шт.

23

J902469

SPACER

- alternator mounting

1шт.

24

S118976

TEMPERATURE SENDER

SENDER - engine temperature

1шт.

25

S108398

TRANSMITTER

SENDER - engine oil pressure, models with oil pressure gauge only, see ref. 25A

1шт.

25a

S242648

SWITCH

SENDER - engine oil pressure, models with oil pressure buzzer and light, see ref. 25

1шт.

26

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

2шт.

27

S63884

SWITCH

- hourmeter, oil pressure activated

1шт.

28

S120535

BRACKET

- alternator support

1шт.

29

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

30

892-1108

LOCK WASHER,M8

plated M8

1шт.
