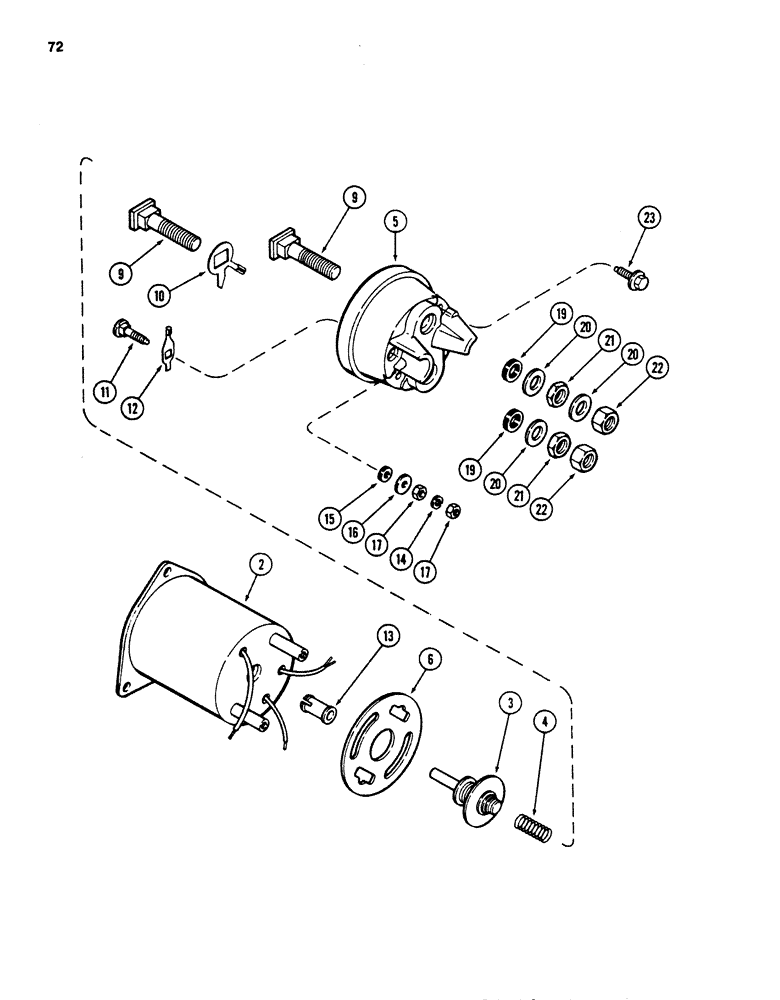

Запчасти Case 880D (072) - STARTER SOLENOID (06) - ELECTRICAL SYSTEMS

A49756

SOLENOID

ASSEMBLY - starter, Includes: Ref. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - solenoid (Order A49496)

1шт.

3

A49566

CONTACTOR

ASSEMBLY - solenoid

1шт.

4

D32499

SPRING

- contact return

1шт.

5

A49572

COVER

- solenoid

1шт.

6

A49565

GASKET

- cover

1шт.

9

A49563

STUD

- terminal, 3/8 inch NC

2шт.

10

A49569

CLIP

- terminal

1шт.

11

A42090

TERMINAL CONNECTOR

STUD - terminal, No. 10

2шт.

12

A49570

GASKET

CLIP - terminal

2шт.

13

A49564

STUD

BUSHING - plunger

1шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

A42084

INSULATOR

WASHER - terminal, rubber

2шт.

16

A49560

WASHER

- terminal

2шт.

17

129-667

NUT,#10-32, LH

4шт.

19

A42085

BUSHING

- communator end

2шт.

20

R15013

WASHER

- terminal stud

3шт.

21

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

23

A49571

CAPTIVE WASHER SCREW,Hex, #10 - 32 x 0.62"

SCREW AND WASHER ASSEMBLY - cover retaining

2шт.
