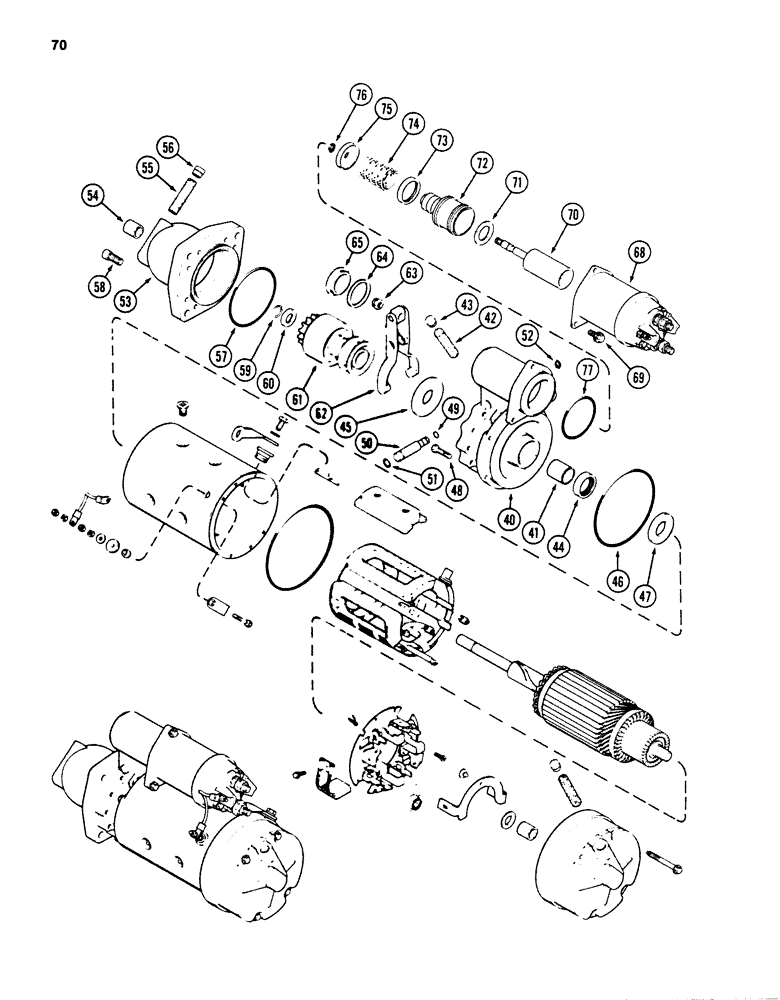

Запчасти Case 880D (070) - A169694 STARTER (06) - ELECTRICAL SYSTEMS

A169694

STARTING MOTOR

STARTER ASSEMBLY - engine (Continued from Figure 68), Includes: Ref. 40 - 7

1шт.

40

A49580

HOUSING

ASSEMBLY - lever, Includes: Ref. 41 - 45

1шт.

41

A49581

BUSHING

- lever

1шт.

42

A49567

WICK

- oil

1шт.

43

A49573

PLUG

- oil wick

1шт.

44

A49562

OIL SEAL

- lever housing

1шт.

45

A49582

WASHER

- lever housing

1шт.

46

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- lever, Serial Range: housing-frame

1шт.

47

A49625

SPACER

- armature

1шт.

48

D32484

SCREW,Hex, 1/4" - 28 x 1"

- housing retaining

5шт.

49

A47259

O-RING,0.244" ID x 0.391" OD

- lever shaft, 3/8 inch OD (10 mm)

1шт.

50

A42199

PIN

SHAFT - shift lever

1шт.

51

A47258

O-RING,0.369" ID x 0.515" OD

- lever shaft, 1/2 inch OD (13 mm)

1шт.

52

G46146

SNAP RING,#37, Ext

RING, Snap, , shift retaining #37, Ext

1шт.

53

A49498

HOUSING

- drive, Includes: Ref. 54 - 57

1шт.

54

A40868

BUSHING

HOUSING - drive housing

1шт.

55

A49567

WICK

- oil

1шт.

56

A49573

PLUG

- oil wick

1шт.

57

A43854

O-RING,3.237" ID x 0.106" THK

- housing

1шт.

58

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

59

A49586

CLIP,ELECTRICAL

RING - pinion retaining

1шт.

60

A49585

STOP

- pinion

1шт.

61

A49584

DRIVE

ASSEMBLY - motor

1шт.

62

A49583

LEVER

ASSEMBLY - shift

1шт.

63

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to lever

1шт.

64

A41924

GASKET

- inspection plug

1шт.

65

R21587

PLUG

- lever housing inspection

1шт.

68

REF

INSTRUCTION

SOLENOID ASSEMBLY - starter (See Figure 72)

1шт.

69

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW AND WASHER ASSEMBLY - solenoid retaining

3шт.

70

A49588

- solenoid

1шт.

71

A41922

WASHER

- solenoid plunger

1шт.

72

A49589

BOOT

- plunger

1шт.

73

A43380

BACK-UP RING

RETAINER - plunger spring

1шт.

74

A41242

SPRING

- plunger

1шт.

75

A43419

SEAT

RETAINER - plunger spring

1шт.

76

G46146

SNAP RING,#37, Ext

RING, Snap, , plunger retainer #37, Ext

1шт.

77

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- solenoid to housing

1шт.

R15013

WASHER

- field coil terminal, 25/64 x 11/16 inch (10 x 17 mm) (Not shown)

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Field coil (Not shown) 3/8"-16, G5

1шт.
