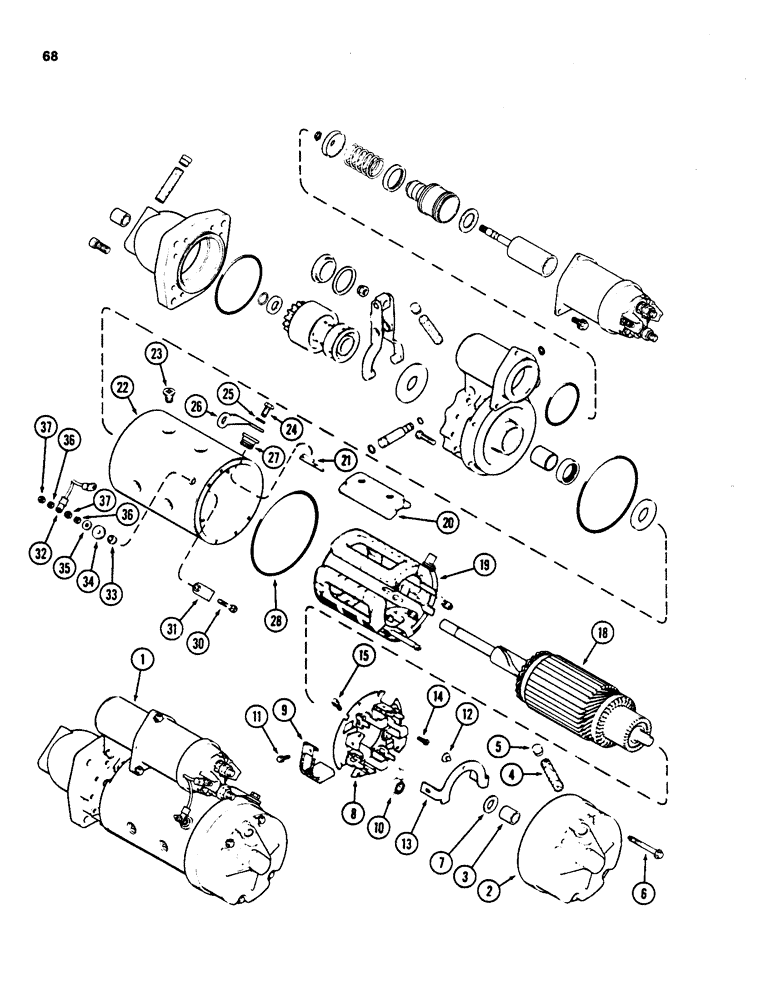

Запчасти Case 880D (068) - A169694 STARTER (06) - ELECTRICAL SYSTEMS

1

A169694

STARTING MOTOR

STARTER ASSEMBLY - new (Delco_Remy No. 1990499), Includes: Ref. 2 - 37

1шт.

1

AR169694

REMAN-STARTER

Remanufactured, Starter

1шт.

1

AC169694

CORE-STARTER

Return Number

1шт.

1

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

1

RC46156

CORE-STARTER

Return Number

1шт.

2

A49497

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A40868

BUSHING

BUSHING - flame

1шт.

4

A49567

WICK

WICK - oil

1шт.

5

A49573

PLUG

PLUG - oil wick

1шт.

6

A49574

CAPTIVE WASHER SCREW,Torx, #10 - 32 x 2.28"

BOLT AND WASHER ASSEMBLY - commutator frame

4шт.

7

195-2056

WASHER,5/8" x 1" x .065"

WASHER - thrust, 9/16 x 1 x 1/16 inch (14 x 25 x 2 mm)

1шт.

8

A49505

BRUSH SET

SPARE PART BRUSH ASSEMBLY - starter, Includes: Ref. 9 - 13

1шт.

9

A49504

BRUSH

BRUSH - starter

4шт.

10

A49575

SPRING

SPRING - brush

4шт.

11

A49576

SELF-TAP SCREW,Hex Washer, #8 - 32 x 0.44"

SCREW - brush retaining

4шт.

12

A49561

INSULATOR

INSULATOR - conductor

1шт.

13

A49577

TERMINAL STRIP

CONDUCTOR - starter

1шт.

14

177-134

SCREW,Sl Fil Hd, #10 - 32 x 7/16""

SCREW - fillister head, No. 10 NF x 7/16 inch

2шт.

15

A47894

SCREW,#8 - 32 x 5/16"

SCREW - coil lead to brush holder

3шт.

18

A49499

ARMATURE

SPARE PART ARMATURE ASSEMBLY - starter

1шт.

19

A49503

COIL ASSY.

SPARE PART COIL ASSEMBLY - field

1шт.

20

A49579

PLATE

SHOE - pole

4шт.

21

A49501

RUBBER INSULATOR

INSULATOR - field terminal, inside

1шт.

22

NSS

NOT SOLD SEPARAT

FRAME - field (Order A169694 starter)

1шт.

23

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoe

8шт.

24

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

25

A42100

WASHER

WASHER - field terminal

1шт.

26

A49502

CONNECTOR, ELEC

SPARE PART CONNECTOR - field terminal

1шт.

27

A49500

RUBBER INSULATOR

INSULATOR - field terminal, outside

1шт.

28

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - frame

1шт.

30

A49508

TERMINAL CONNECTOR

SPARE PART STUD - terminal

1шт.

31

A49506

ISOLATOR

INSULATOR - terminal

1шт.

32

A49507

ELECTRICAL WIRE

SPARE PART LEAD - wire terminal

1шт.

33

A49578

BUSHING

SPARE PART BUSHING - terminal

1шт.

34

A49568

WASHER

WASHER - terminal insulator

1шт.

35

A49560

WASHER

WASHER - terminal

1шт.

36

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

37

129-667

NUT,#10-32, LH

NUT, #10-32, LH

2шт.
