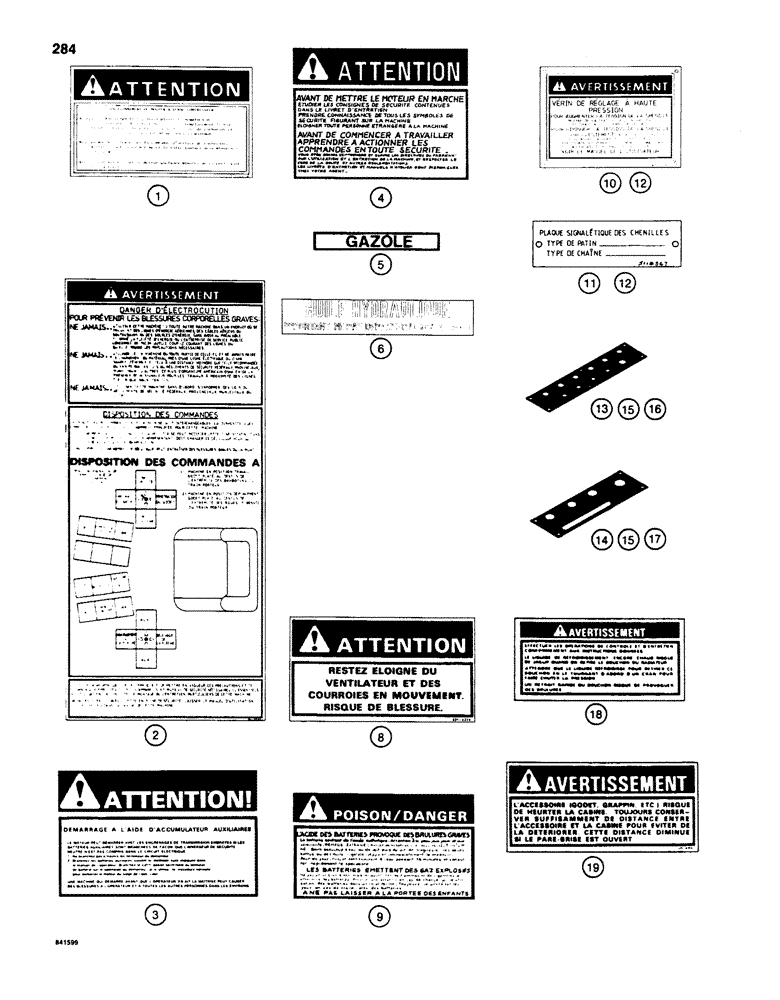

Запчасти Case 880D (284) - DECALS, SPECIAL FRENCH LANGUAGE DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-5712

PRODUCT GRAPHIC

DECAL - turbocharger operating precautions

1шт.

Part of Decal Kit, P/N S618228

1шт.

2

321-6712

DECAL

- Control Pattern A, standard

1шт.

Part of Decal Kit, P/N S618228

1шт.

3

321-5581

DECAL

- Warning, starting precautions

1шт.

Discard & Adopt 321-6720, #DR0184-177.

1шт.

Part of Decal Kit, P/N S618228

1шт.

4

321-4020

DECAL

- Warning, safe operation

1шт.

Part of Decal Kit, P/N S618228

1шт.

5

321-6146

DECAL

- diesel fuel

1шт.

Part of Decal Kit, P/N S618228

1шт.

6

321-5152

DECAL

- hydraulic oil fill

1шт.

Part of Decal Kit, P/N S618228

1шт.

8

321-4324

DECAL

- Warning, engine fan

3шт.

Part of Decal Kit, P/N S618228

1шт.

9

321-2841

DECAL

- Warning, battery

1шт.

Part of Decal Kit, P/N S618228

1шт.

10

321-6509

DECAL

- Warning, track adjustment cylinder

2шт.

11

S241891

PLATE

DECAL - identification, track type

1шт.

12

S23395

SCREW

- drive, No. 7 - 32 NC x 5/16", not shown

10шт.

13

321-6098

PANEL

DECAL - instrument panel, left-hand console

1шт.

14

S516184

PANEL

DECAL - instrument panel, right-hand console

1шт.

15

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - No. 10 - 24 NC x 3/4", black, not shown

10шт.

16

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, not shown

6шт.

17

86632551

NUT,#10-24, GB

NUT, LOCK, , Not shown #10-24, GB

4шт.

18

321-6701

DECAL

- Warning, cooling system

1шт.

Part of Decal Kit, P/N S618228

1шт.

19

321-6702

DECAL

- Warning, cab

1шт.

Part of Decal Kit, P/N S618228

1шт.

S618228

KIT

- decal, French, Includes: Ref. 1, 2, 3, 4, 5, 6, 8, 9, 18, and 19, also Refs. on Figure 279

1шт.
