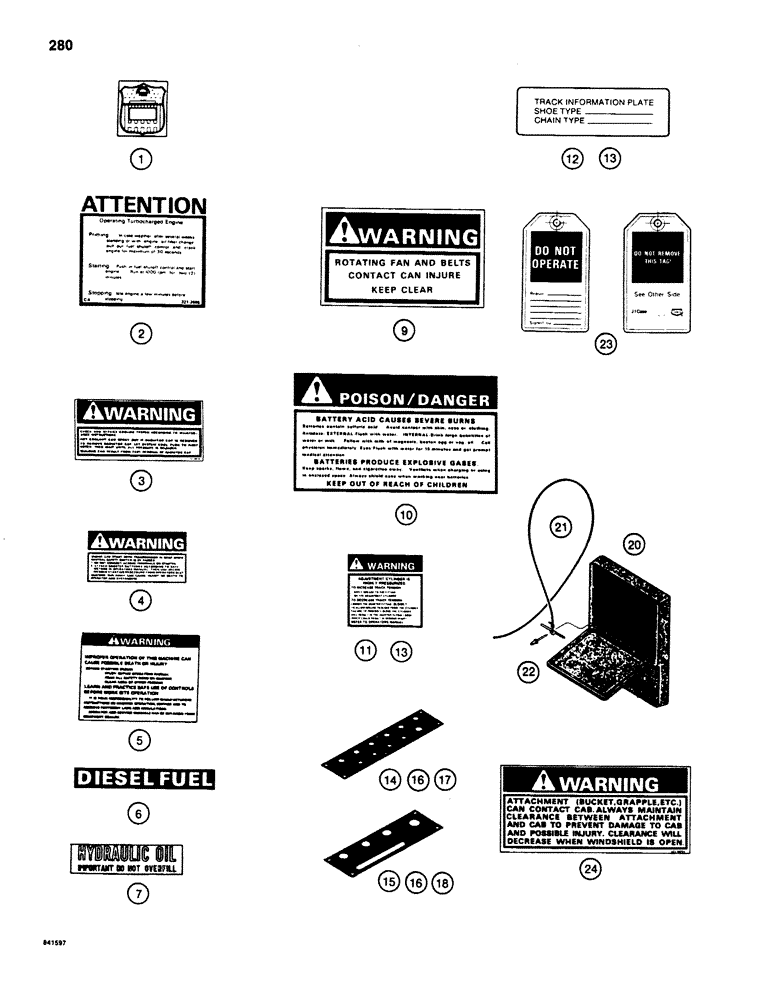

Запчасти Case 880D (280) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

S242429

DECAL

- PCSA

1шт.

2

321-2605

DECAL

- turbocharger operating precautions

1шт.

3

321-6672

DECAL

- Warning, cooling system

1шт.

4

321-3709

DECAL

- Warning, starter service

1шт.

Discard and adopt 321-6718.

1шт.

5

S231311

DECAL

- Warning, safe operation

1шт.

6

321-2601

DECAL

- diesel fuel

1шт.

7

S80209

DECAL

- hydraulic oil fill

1шт.

9

321-3596

DECAL

- Warning, engine fan

3шт.

10

321-2996

DECAL

- Warning, battery

1шт.

Discard and adopt 321-6714.

1шт.

11

321-6272

DECAL

- Warning, track adjustment cylinder

2шт.

12

S241890

DECAL

- identification, track type

1шт.

13

S23395

SCREW

- drive, No. 7 - 32 NC x 5/16", not shown

10шт.

14

321-6098

PANEL

DECAL - instrument panel, left-hand console

1шт.

15

S516184

PANEL

DECAL - instrument panel, right-hand console

1шт.

16

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - No. 10 - 24 NC x 3/4", black, not shown

10шт.

17

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, not shown

6шт.

18

86632551

NUT,#10-24, GB

NUT, LOCK, , Not shown #10-24, GB

4шт.

20

S511692

BOX

- operators manual

1шт.

21

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

22

151-532

RIVET,Pop, 3/16" x .700"

POP RIVET - manual box to cab

2шт.

23

321-4614

TAG

- do not operate

1шт.

24

321-6694

DECAL

- Warning, cab

1шт.

S618227

KIT

- decal, English, includes Ref. 1 - 7, 9, 10, 24 and Refs. on Figures 279 and 283

1шт.
