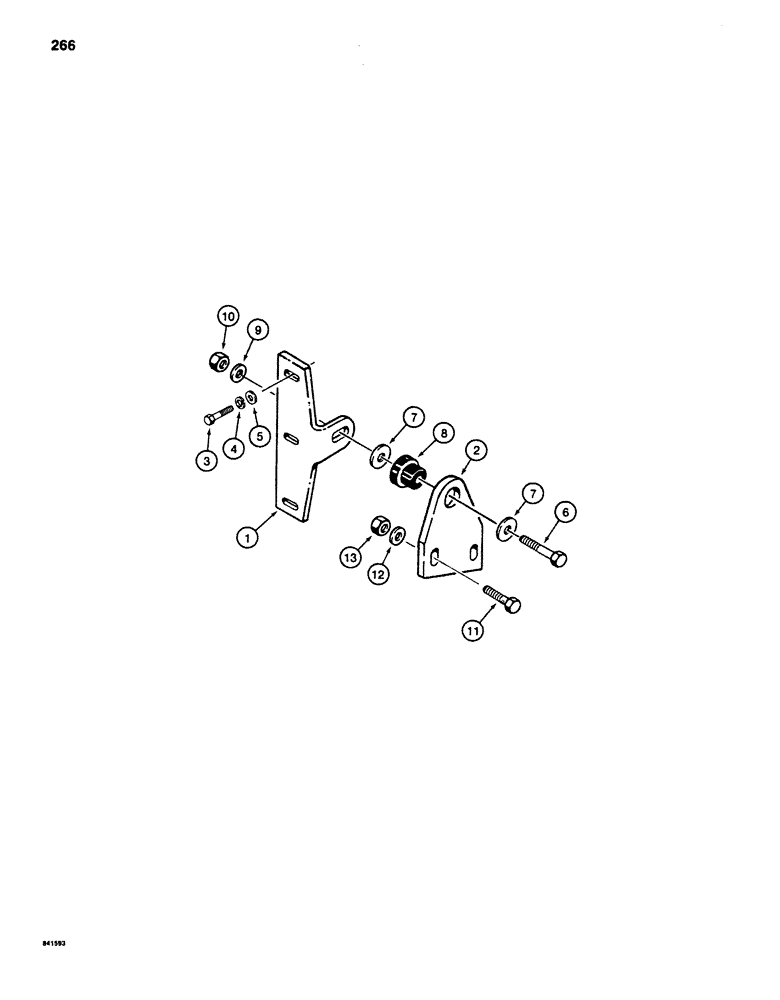

Запчасти Case 880D (266) - UPPER CAB MOUNTING BRACKET (05) - UPPERSTRUCTURE CHASSIS

1

S514820

BRACKET

- cab mounting, at cab

1шт.

2

S238103

BRACKET

- cab mounting, at turntable

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex head, 1/2" - 13 NC x 1-3/4", plated

3шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

5

S95569

WASHER

- flat, 1/2", hardened

3шт.

6

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

7

196-10

WASHER,.521" x 2" x .134", HDN

- flat, special, 1/2" ID x 2" OD, hardened

2шт.

8

S110886

MOUNTING PARTS

MOUNT - rubber, cab bracket

1шт.

9

S95569

WASHER

- flat, 1/2", hardened

1шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

11

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

12

S95569

WASHER

- flat, 1/2", hardened

2шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.
