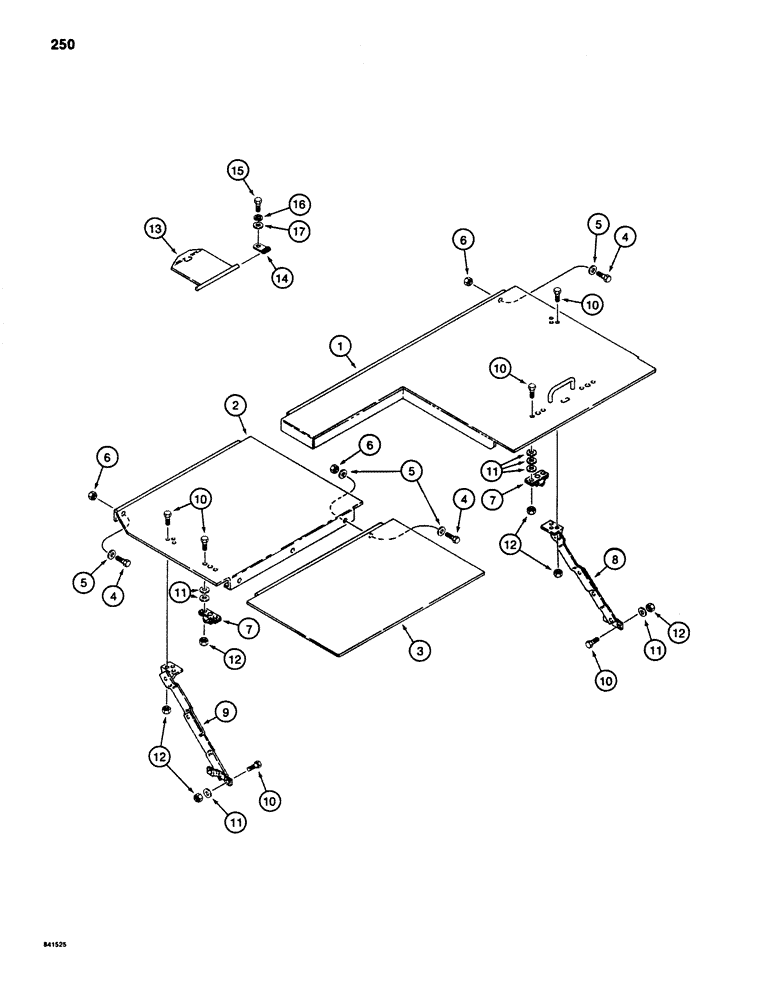

Запчасти Case 880D (250) - OPTIONAL SECURITY COVERS (05) - UPPERSTRUCTURE CHASSIS

1

S617279

DOOR

- over batteries

1шт.

2

S515700

DOOR

- over air cleaner

1шт.

3

S515698

DOOR

PANEL- door extension, over fuel tank

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

11шт.

5

195-104

WASHER,3/8"

- flat, , plated 3/8"

14шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, 3/8" - 16 NC

11шт.

7

S110414

LOCK

- access doors

3шт.

8

S219460

BRACE

- S 617279 door

1шт.

9

S219473

BRACE

- S 515700 door

1шт.

10

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4" - 20 NC x 7/8", plated

16шт.

11

195-103

WASHER,5/16"

- flat, 1/4", plated

20шт.

12

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

16шт.

13

S225221

COVER

DOOR - radiator access

1шт.

Ref: 13 Door is for Hyd. Tank not radiator access.

1шт.

14

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- hinge

2шт.

15

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

2шт.
