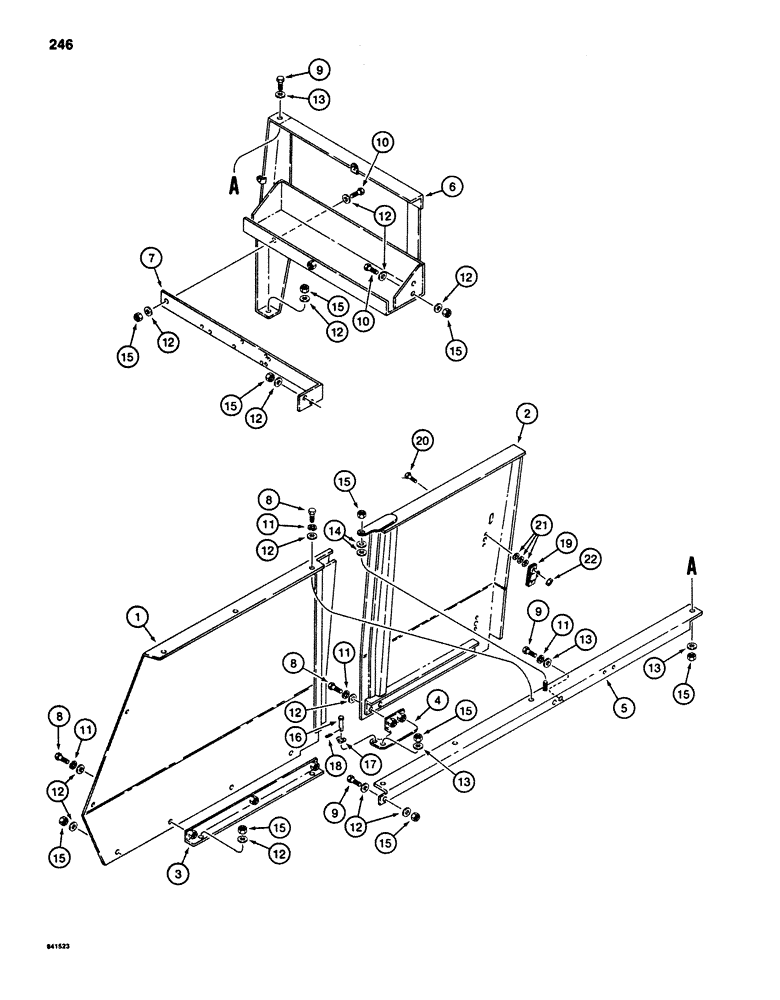

Запчасти Case 880D (246) - LEFT-HAND SIDE PANELS (05) - UPPERSTRUCTURE CHASSIS

1

S617232

SHROUD

PANEL - rear

1шт.

2

S617277

DOOR

- access, side

1шт.

3

S240925

ANGLE

BRACKET - lower

1шт.

4

S240924

BRACKET

HINGE - door, lower

1шт.

5

S515696

ANGLE

BRACKET - upper

1шт.

Discard and adopt S242724 effective

1шт.

6

S618742

BRACE

- includes battery shelf

1шт.

7

S240492

SUPPORT ASSY.

BRACKET - cross

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

12

S95569

WASHER

- flat, 1/2", plated

24шт.

13

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated

5шт.

14

195-41

WASHER,5/8"

2шт.

15

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

15шт.

16

S10775

PIN

CLEVIS PIN - door hinge

1шт.

17

S62147

RING

RETAINING RING - special

1шт.

18

S120261

PIN

COTTER PIN - door hinge clevis pin

1шт.

19

S110414

LOCK

- access door

2шт.

20

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4" - 20 NC x 7/8", plated

4шт.

21

195-103

WASHER,5/16"

- flat, 1/4", plated

12шт.

22

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4", plated

4шт.

S115083

KEY

shroud

1шт.
