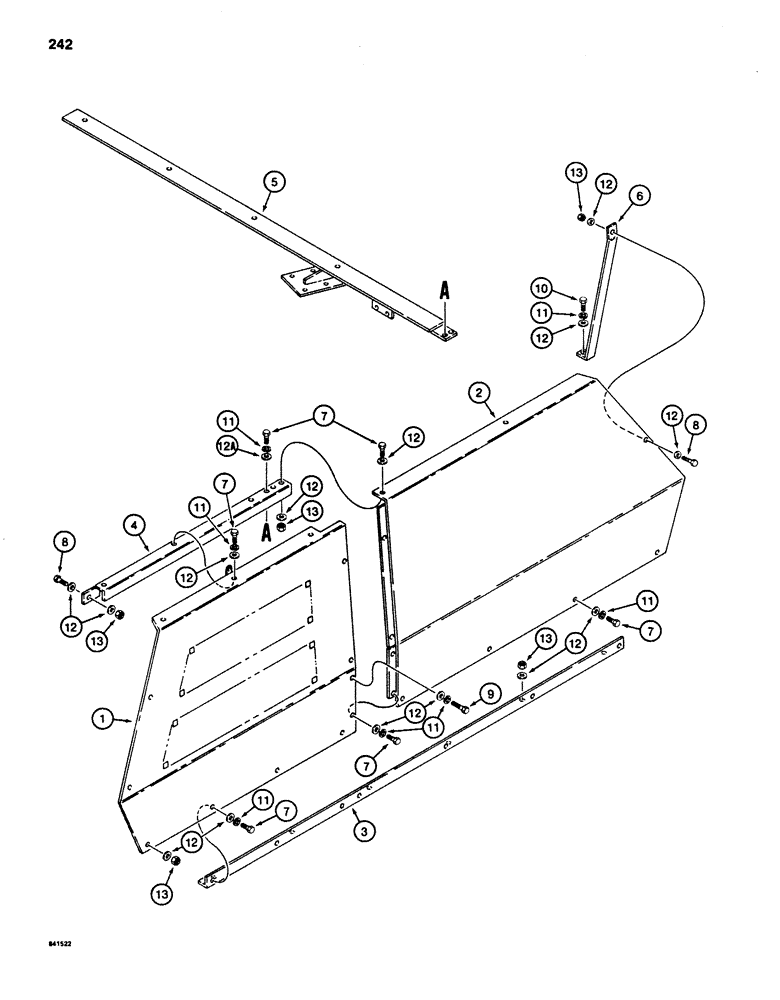

Запчасти Case 880D (242) - RIGHT-HAND SIDE PANELS (05) - UPPERSTRUCTURE CHASSIS

1

S617922

SHROUD

PANEL - side, rear

1шт.

2

S617259

SHROUD

PANEL - side, front

1шт.

3

S240942

ANGLE

BRACKET - lower

1шт.

4

S515691

ANGLE

BRACKET - upper

1шт.

S515691 Bracket - upper - Discard & Adopt S242722 W/ June 85 Production per ECS #DR8885-001.

1шт.

5

S515693

ANGLE

BRACKET - cross

1шт.

6

S240493

ANGLE

BRACE - side panel

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

13шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

17шт.

12

S95569

WASHER

- flat, 1/2", hardened

30шт.

12a

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

2шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self- locking, 1/2" - 13 NC, plated

12шт.
