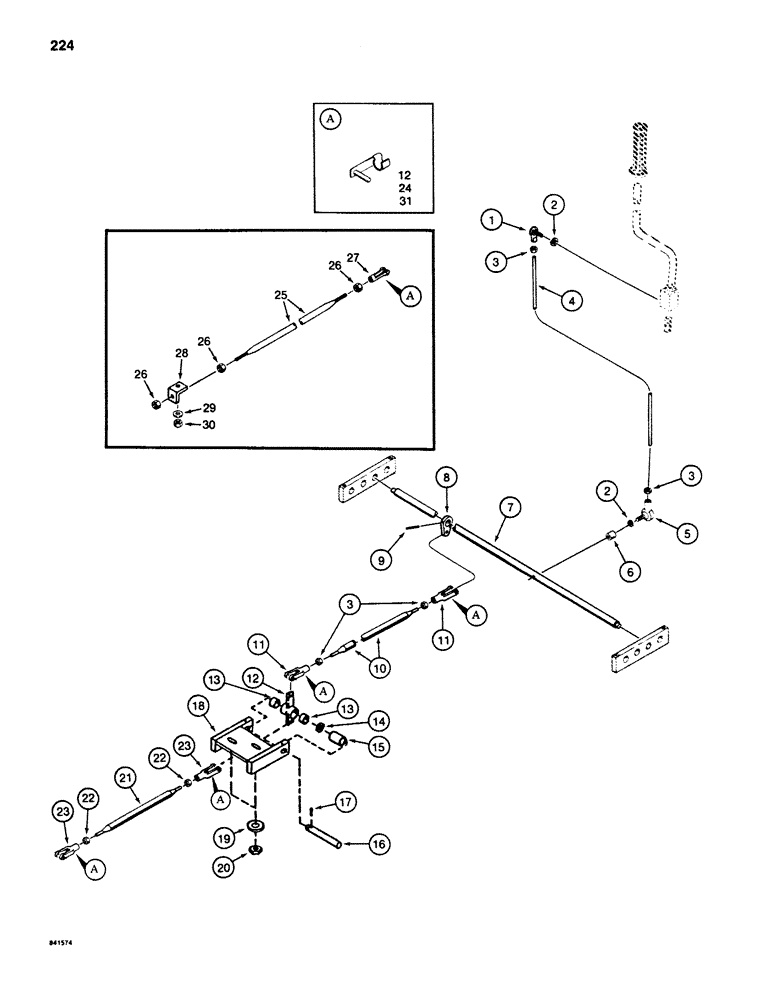

Запчасти Case 880D (224) - CONTROLS, LEVELER LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S236680

BALL JOINT

- upper

1шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF, plated

6шт.

4

S99329

STUD

ROD - connecting

1шт.

5

S116900

BALL JOINT

- lower

1шт.

6

D55769

SPACER

- ball joint

1шт.

7

S514830

SHAFT

- pivot

1шт.

8

S238822

LEVER

- connecting rod

1шт.

9

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

10

S222941

ROD

- connecting, models without auxiliary hydraulic circuit

1шт.

10a

S229509

ROD

- connecting, models with auxiliary hydraulic circuit

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rods

4шт.

12

A147652

PIN

CLEVIS PIN - self-locking, additional parts required when one spool control valve is used

4шт.

12

S229513

ARM ASSY.

BELLCRANK - connecting rods, additional parts required when one spool control valve is used

1шт.

13

A30586

NEEDLE BEARING

- bellcrank, additional parts required when one spool control valve is used

2шт.

14

195-41

WASHER,5/8"

Spacer, Additional parts required when one spool control valve is used 5/8"

1шт.

15

D50204

SPACER

- bellcrank, additional parts required when one spool control valve is used

1шт.

16

S105985

PIN

- bellcrank pivot, additional parts required when one spool control valve is used

1шт.

17

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , Additional parts required when one spool control valve is used 5/32" x 1", Slotted

1шт.

18

S229513

ARM ASSY.

BELLCRANK - connecting rods, additional parts required when one spool control valve is used

1шт.

Bellcrank replaced by S242451 Bracket

1шт.

19

S95569

WASHER

- flat, 1/2", hardened, additional parts required when one spool control valve is used

2шт.

20

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated, additional parts required when one spool control valve is used

2шт.

21

S81263

ROD

- connecting, additional parts required when one spool control valve is used

1шт.

22

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF, plated, additional parts required when one spool control valve is used

2шт.

23

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rod, additional parts required when one spool control valve is used

2шт.

24

A147652

PIN

CLEVIS PIN - self-locking, additional parts required when one spool control valve is used

2шт.

25

S229509

ROD

- connecting, models without auxiliary hydraulic circuit, fixed required when one spool control valve is not used

1шт.

25

S229507

ROD

- connecting, models with auxiliary hydraulic circuit, fixed required when one spool control valve is not used

1шт.

26

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, self-locking, 1/2" - 13 NC, plated, fixed rod required when one spool control valve is not used

3шт.

27

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rod, fixed required when one spool control valve is not used

1шт.

28

S237631

ANGLE

- rod anchor, fixed required when one spool control valve is not used

1шт.

29

195-33

WASHER,1/2"

- flat, , plated, fixed rod required when one spool control valve is not used 1/2"

1шт.

30

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated, fixed rod required when one spool control valve is not used

1шт.

31

A147652

PIN

CLEVIS PIN - self-locking, fixed rod required when one spool control valve is not used

1шт.
