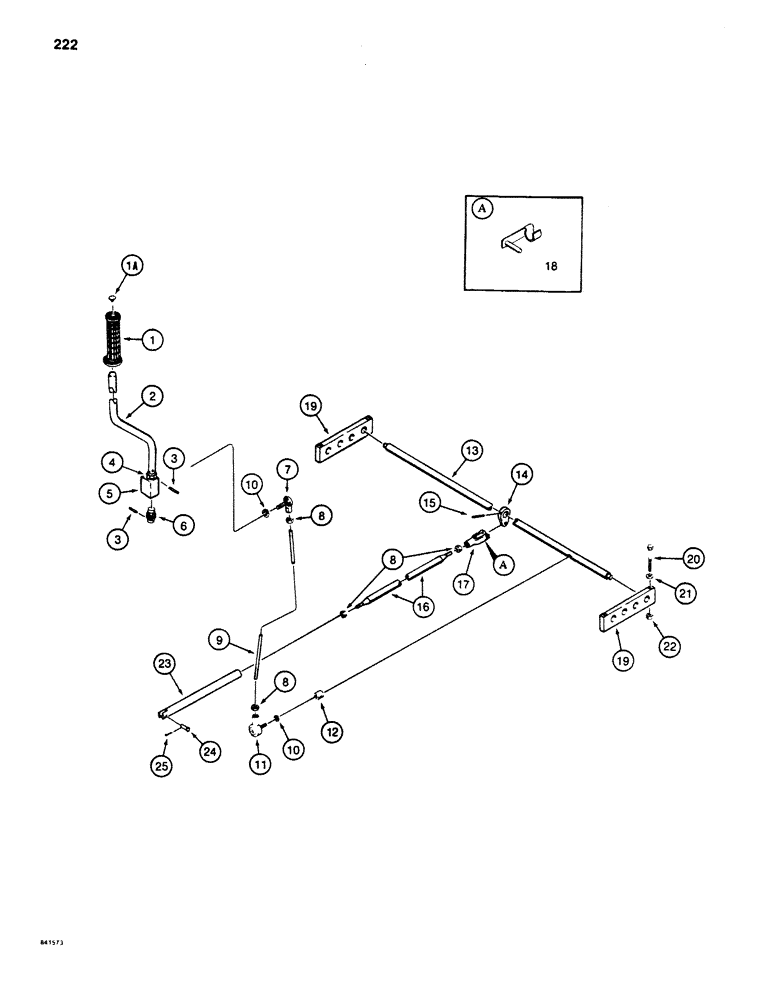

Запчасти Case 880D (222) - CONTROLS, ARM CONTROL LEVER AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S119987

GRIP

- control lever

1шт.

1a

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8"

1шт.

2

S514719

HANDLE

CONTROL LEVER - arm

1шт.

3

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

4

425-1410

JAM NUT,Jam, 5/8"-11, G5

JAM NUT - , hex 5/8" - 11 NC, plated

1шт.

4a

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

5

S516578

HANDLE

BLOCK - pivot

1шт.

6

S242118

SWIVEL CONNECTION

UNIVERSAL JOINT - control lever

1шт.

7

S236680

BALL JOINT

- at block

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF, plated

4шт.

9

S99329

STUD

ROD - connecting

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

S116900

BALL JOINT

-, Serial Range: rod-shaft

1шт.

12

D55769

SPACER

- ball joint

1шт.

13

S514829

SHAFT

- pivot

1шт.

14

S238822

LEVER

- connecting rod

1шт.

15

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

16

S229507

ROD

- connecting

1шт.

17

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rod

1шт.

18

A147652

PIN

CLEVIS PIN - self-locking

1шт.

19

S514438

BAR

- shaft support

2шт.

20

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

22

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16NC, plated

4шт.

23

S238834

ROD

EXTENSION - to control valve

1шт.

24

S10768

PIN

CLEVIS PIN - rod

1шт.

25

132-67

COTTER PIN,5/32" x 3/4"

PIN, Split (Cotter), 5/32" x 3/4"

1шт.
