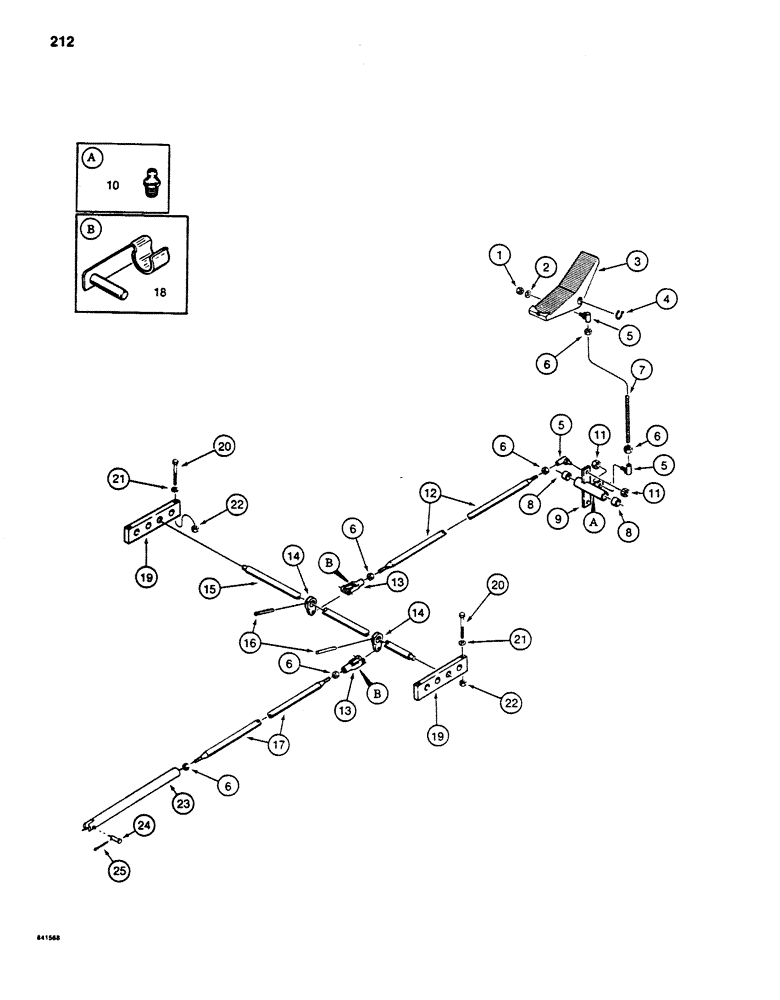

Запчасти Case 880D (212) - CONTROLS, SWING PEDAL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8" - 24 NF, plated

1шт.

2

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

3

S618530

PEDAL

- swing

1шт.

4

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining, pedal

1шт.

5

D38296

JOINT

BALL JOINT - connecting rods

3шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF, plated

6шт.

7

S48765

STUD

-, Serial Range: pedal-bellcrank

1шт.

8

A30586

NEEDLE BEARING

- bellcrank

2шт.

9

S240330

ARM ASSY.

BELLCRANK - connecting rods, Includes: Ref. 10

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

11

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8" - 24 NF, plated

2шт.

12

S81263

ROD

- connecting

1шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - connecting rods

2шт.

14

S238822

LEVER

- connecting rods

2шт.

15

S229916

SHAFT

- pivot

1шт.

16

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

17

S219278

ROD

- connecting

1шт.

18

A147652

PIN

CLEVIS PIN - self-locking

2шт.

19

S512159

SUPPORT

BAR - shaft support

2шт.

20

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

22

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

23

S238834

ROD

EXTENSION - to control valve

1шт.

24

S10768

PIN

CLEVIS PIN - rod

1шт.

25

132-67

COTTER PIN,5/32" x 3/4"

PIN, Split (Cotter), 5/32" x 3/4"

1шт.
