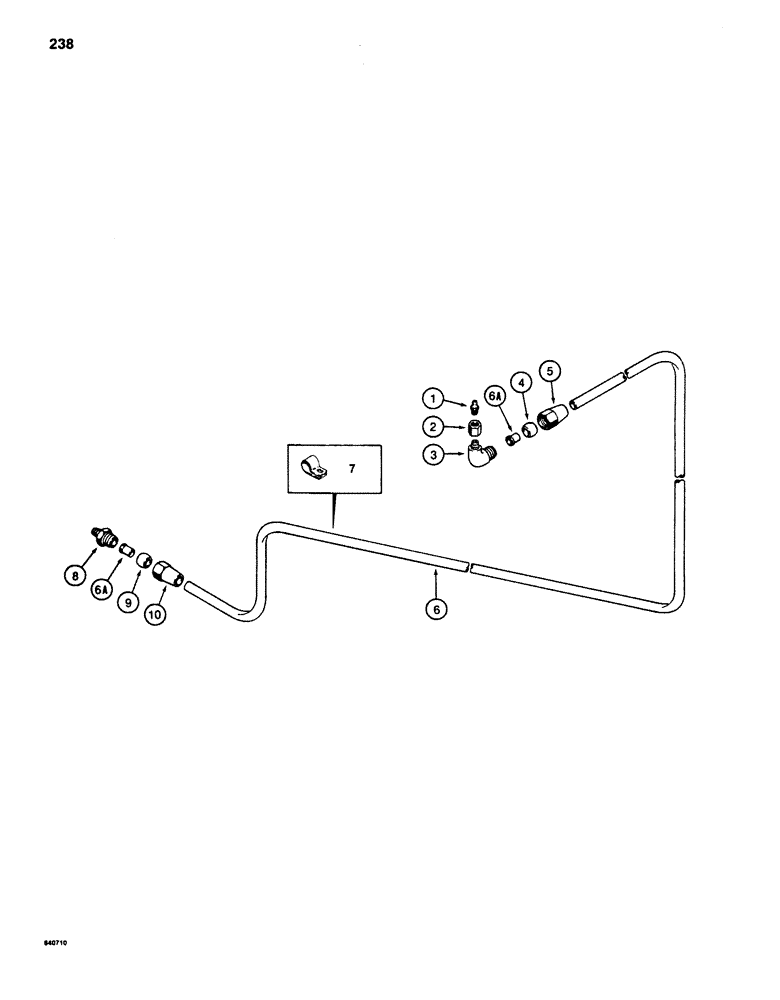

Запчасти Case 880D (238) - TURNTABLE BEARING LUBRICATION LINE (04) - UNDERCARRIAGE

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

NPT

1шт.

2

217-226

COUPLING

ADAPTER - straight, female

1шт.

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

ASSEMBLY - male, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, male

1шт.

4

222-1860

SLEEVE,3/8" Tube, Comp

1шт.

5

222-1865

NUT,17/32"-24, Sph Sleeve

Compression sleeve

1шт.

6

REF

INSTRUCTION

HOSE - lubrication line, 52" (1320 mm) long, cut from S118405, see below

1шт.

6a

222-2446

INSERT,1/4" Tube

Tube end

2шт.

7

A61275

CLIP

CLAMP - lubrication hose

1шт.

222-1839

FITTING,17/32"-24 x 1/8" NPT

CONNECTOR ASSEMBLY - straight, male, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

CONNECTOR - straight, male

1шт.

9

222-1860

SLEEVE,3/8" Tube, Comp

1шт.

10

222-1865

NUT,17/32"-24, Sph Sleeve

Compression sleeve

1шт.

S118405

HOSE,600.00", SAE J844

1шт.
