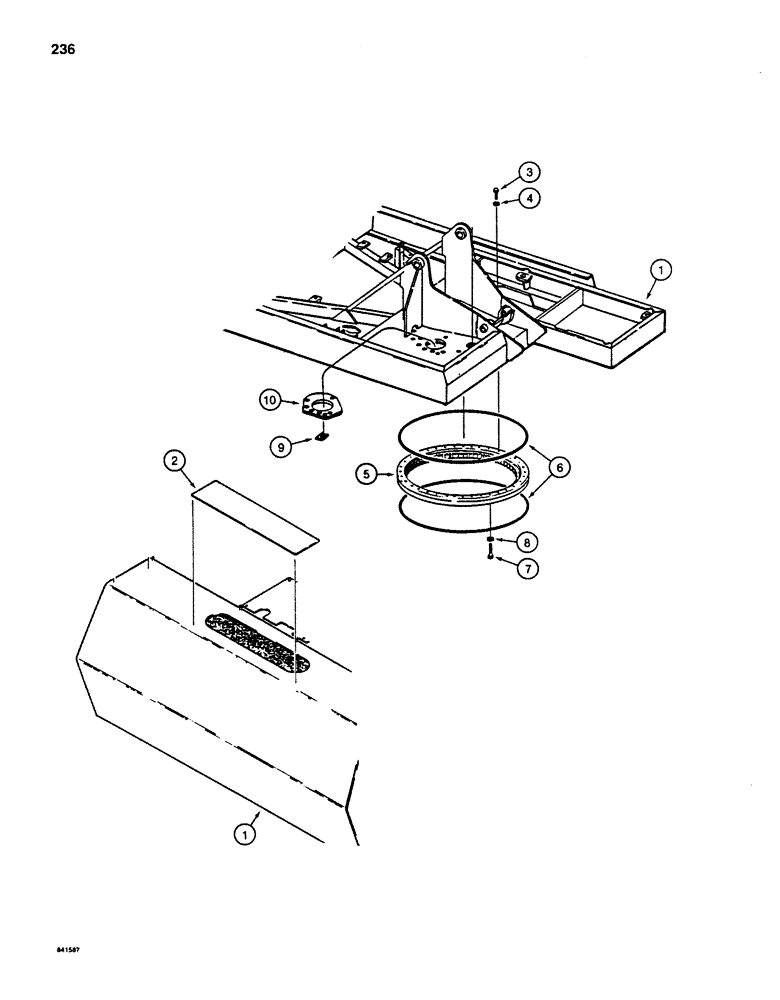

Запчасти Case 880D (236) - TURNTABLE AND BEARING (04) - UNDERCARRIAGE

1

S956587

ASSEMBLY

TURNTABLE - less counterweight material

1шт.

2

S242214

PLATE

- cover, Serial Range: welds-turntable

1шт.

3

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8

36шт.

4

S92353

WASHER

- flat, 5/8", hardened

36шт.

S508668

SLEWING RING

BEARING ASSEMBLY - turntable, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

BEARING - without seals

1шт.

6

S105067

SEAL

- bearing, 156" (3962 mm) long, cut to correct length of 138" (3505 mm)

2шт.

7

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", grade 8

36шт.

8

S92353

WASHER

- flat, 5/8", hardened

36шт.

9

S84889

SHIM,.003" Thk

(.0762 mm), Swing gearbox mounting .003" Thk

1шт.

9

S77916

SHIM,.005" Thk

(.1270 mm), Swing gearbox mounting .005" Thk

1шт.

9

S84890

SHIM,.007" Thk

(.1778 mm), Swing gearbox mounting .007" Thk

1шт.

9

S77917

SHIM,.010" Thk

(.2540 mm), Swing gearbox mounting .010" Thk

1шт.

9

S77918

SHIM,.015" Thk

(.3810 mm), Swing gearbox mounting .015" Thk

1шт.

9

S77919

SHIM,.030" Thk

(.7620 mm), Swing gearbox mounting .030" Thk

1шт.

9

S77920

SHIM,.060" Thk

(1.524 mm), Swing gearbox mounting .060" Thk

1шт.

10

S510936

PLATE

SUPPORT - swing gearbox mounting, Serial Range: welds-turntable

1шт.
