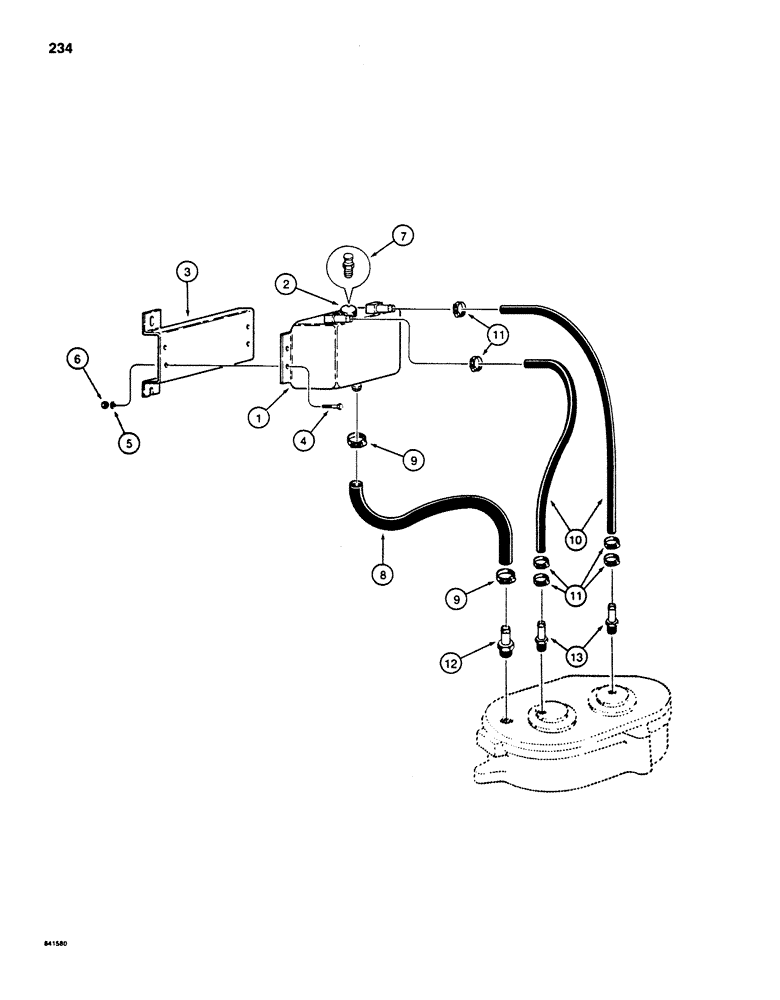

Запчасти Case 880D (234) - SWING GEARBOX LUBRICATION SYSTEM (04) - UNDERCARRIAGE

S516470

CONTAINER

RESERVOIR ASSEMBLY - Lubricant, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - Lubricant

1шт.

2

N8793

CAP

Reservoir

1шт.

3

S242000

BRACKET

Reservoir

1шт.

4

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

5

195-103

WASHER,5/16"

4шт.

6

231-1445

NUT,5/16"-18, GB

4шт.

7

L33264

BREATHER

Reservoir

1шт.

8

REF

INSTRUCTION

HOSE - Gearbox cover, 25" (635 mm) long, cut from S118576, see below

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

10

REF

INSTRUCTION

HOSE - To bearing covers, 32" 813 mm) long, cut from S120221, see below

2шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

6шт.

12

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM - Gearbox

1шт.

13

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

STEM - Bearing covers

2шт.

S118576

HOSE,0.62" ID BULK

1шт.

S120557

HOSE,0.25" ID x 300.00", SAE 30R6

Bulk length

1шт.
