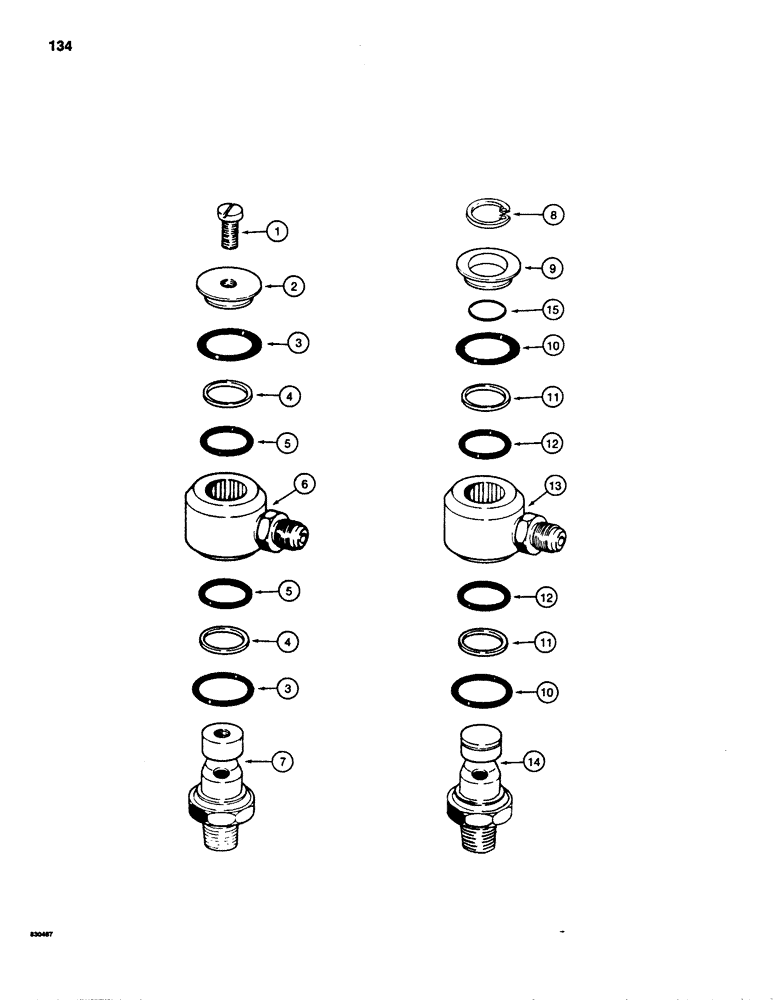

Запчасти Case 880D (134) - INNER SWIVEL, UPPER, MAYSON TYPE, WITH SCREW MOUNTED CAP (04) - UNDERCARRIAGE

S209351

FITTING

SWIVEL ASSEMBLY - Mayson, Includes: Ref. 1 - 7

1шт.

1

177-95

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

MACHINE SCREW - No. 10 - 32NF x 3/8"

1шт.

2

S7989

CAP

- grit

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outside

2шт.

4

N8522

WASHER

BACKUP RING - internal o-ring

2шт.

5

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- internal seal

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - swivel

1шт.

7

NSS

NOT SOLD SEPARAT

STEM - swivel

1шт.

S209351

FITTING

SWIVEL ASSEMBLY - Parker Hannifin, with snap ring, Includes: Ref. 8 - 15

1шт.

8

F21293

SNAP RING,#59, Ext

RING, Snap, , cap, Parker Hannifin #59, Ext

1шт.

Part of Seal kit P/N S95177

1шт.

9

NSS

NOT SOLD SEPARAT

CAP - grit, parker hannifin, with snap ring

1шт.

10

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- outside, parker hannifin, with snap

2шт.

11

N8522

WASHER

BACKUP RING - internal seal, parker hannifin, with snap

2шт.

Part of Seal kit P/N S95177

1шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- internal seal, parker hannifin, with snap

2шт.

Part of Seal kit P/N S95177

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - swivel, parker hannifin, with snap ring

1шт.

14

NSS

NOT SOLD SEPARAT

STEM - swivel, parker hannifin, with snap ring

1шт.

15

A65918

O-RING,0.551" ID x 0.691" OD

- small, inside cap, not shown, parker hannifin, with snap

1шт.

Part of Seal kit P/N S95177

1шт.

S95177

KIT

SEAL KIT - for Parker Hannifin type only, Includes Ref. 8, 10 - 12 and 15, with snap ring

1шт.

S300361

SEAL KIT

seal, swivel, parker hannifin, with snap ring

1шт.
