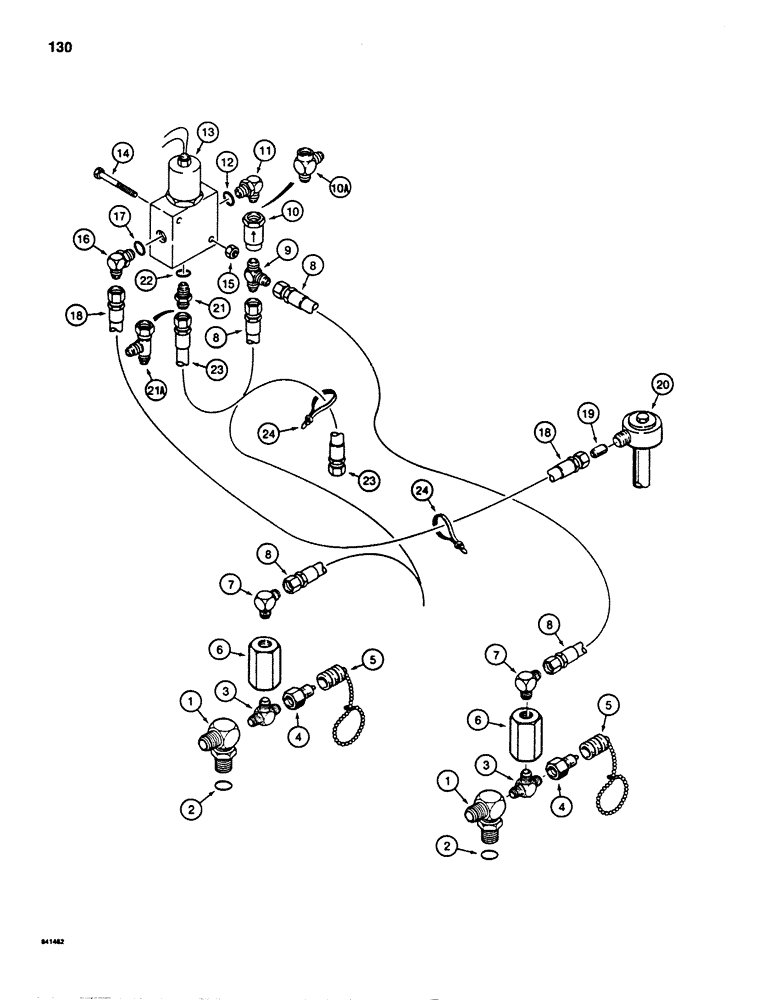

Запчасти Case 880D (130) - TRACK BRAKE HYDRAULIC LINES, UPPER (04) - UNDERCARRIAGE

1

S113093

ELBOW

- 90 degree, at control valves, Includes: Ref. 2

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

3

217-1273

TEE,Male, 1/4"-18

- at check valves

2шт.

4

S206607

DISC

COUPLING - quick disconnect

2шт.

S206607 Coupling- quick disconnect the mating end's P/N is S206610.

1шт.

5

S206608

CAP

- dust

2шт.

6

S110789

VALVE

CHECK VALVE - brake circuit

2шт.

7

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, check valve to hose

2шт.

8

S99421

HOSE ASSY.

HOSE - to solenoid valve, 23" (584 mm) long

2шт.

9

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- at screen

1шт.

10

S98004

FILTER

SCREEN - solenoid valve protection

1шт.

10a

S114909

TEE

- used on models with optional fast hoist feature, see Figure 152 and 154 for fast hoist hydraulic lines 155 for fast hoist hydraulic lines

1шт.

11

218-5302

ELBOW

- 90 degree, at solenoid valve, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

13

S237789

VALVE

- solenoid, parts list Figure 196

1шт.

14

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20NC x 2-1/4", plated

2шт.

15

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20NC, plated

2шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, solenoid valve to brake line hose, Includes: Ref. 17

1шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

18

S241219

HOSE ASSY.

HOSE - brake line, to inner swivel, 50" (1270 mm) long

1шт.

19

S89669

VALVE

RESTRICTOR - flow

1шт.

20

REF

INSTRUCTION

SWIVEL - inner, parts list Figure 132

1шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, solenoid valve to drain hose

1шт.

21a

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- used on models with optional fast hoist feature, see Figure 152 and 154 for fast hoist hydraulic lines 155 forfast hoist hydraulic lines, Includes: Ref. 22

1шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

23

S227396

HOSE ASSY.

HOSE - solenoid valve drain, 50" (1270 mm) long

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
