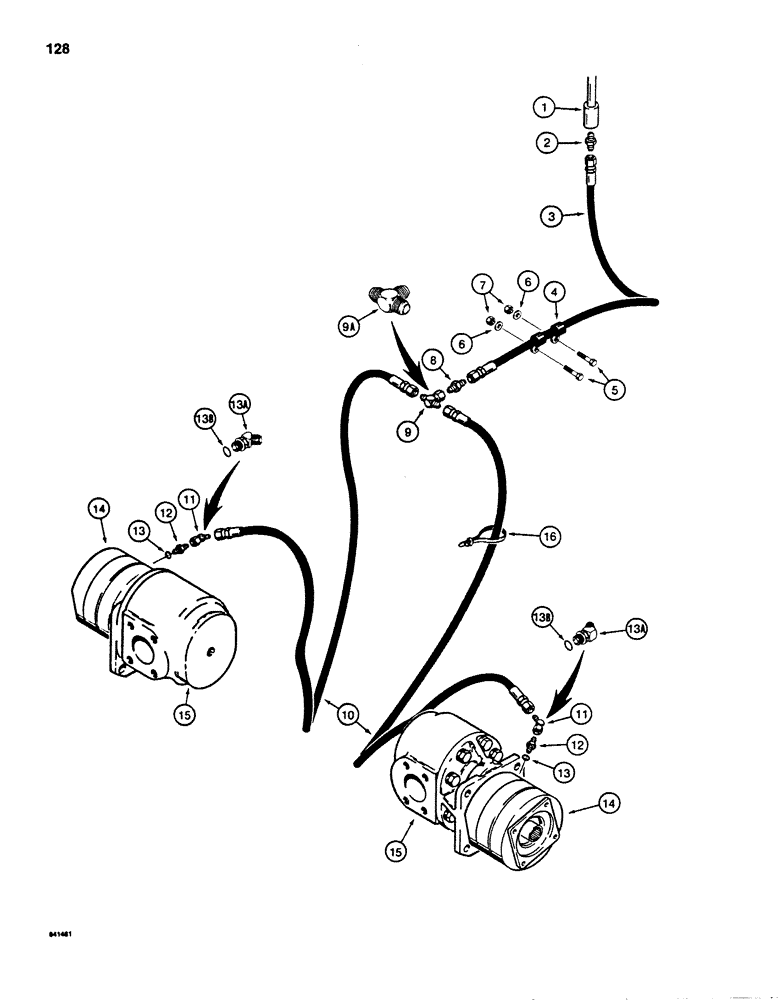

Запчасти Case 880D (128) - TRACK BRAKE HYDRAULIC LINES, LOWER (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
SWIVEL - inner, parts list Figure 132
1шт.
2
218-1022
HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF
ADAPTER - straight, inner swivel, bottom port
1шт.
3
S77467
HOSE
- from swivel, 38" (965 mm) long
1шт.
4
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
- hose
2шт.
5
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
6
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
2шт.
7
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC, plated
2шт.
8
218-749
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, 37 Degree
ADAPTER - straight, hose to tee, used before PIN, Serial Range: -6205681
1шт.
9
218-836
TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br
- brake lines, used before PIN, Serial Range: -6205681
1шт.
9a
218-591
TEE,7/16"-20, 37 Degree
- brake lines, used on PIN and after (Replaces 218-5191), Start Serial: 6205681
1шт.
10
S77121
HOSE
- to brakes, 21" (533 mm) long, used before PIN, Serial Range: -6205681
2шт.
10
S77467
HOSE
- to brakes, 38" (965 mm) long, used on PIN and after, Start Serial: 6205681
2шт.
11
218-5172
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC
- 45 degree, at brakes, used before PIN, Serial Range: -6205681
2шт.
12
218-5352
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
ADAPTER - straight, at brakes, used before PIN, Includes: Ref. 13, Serial Range: -6205681
2шт.
13
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- adapter
1шт.
13a
218-5133
ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
- 45 degree, at brakes, used on PIN and after, Includes: Ref. 13B, Start Serial: 6205681
2шт.
13b
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- elbow
1шт.
14
S515960
BRAKE ASSY.
BRAKE ASSEMBLY - parts list Figure 136
2шт.
15
S515589
MOTOR
ASSEMBLY - hydraulic, track drive, parts list Figure 122
2шт.
16
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
