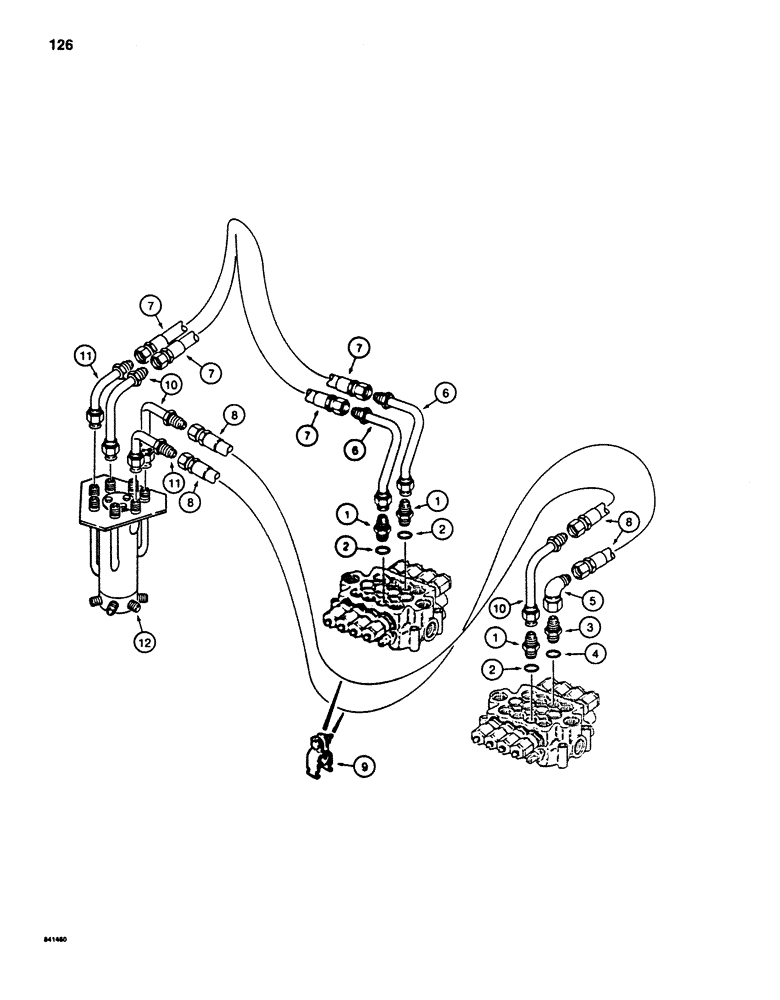

Запчасти Case 880D (126) - TRACK DRIVE HYDRAULIC LINES, UPPER (04) - UNDERCARRIAGE

1

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, inside valve ports and front port of outside valve, Incl. Ref. 2

3шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, rear port of outside valve, Incl. Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

5

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

6

S240519

TUBE ASSY.,1" OD

TUBE - from inside valve ports

2шт.

7

S400834

HOSE

- from inside valve, 36-1/2" (927 mm) long

2шт.

8

H300715

HOSE ASSY.

HOSE - from outside valve, 72" (1829 mm) long

2шт.

9

S93266

CLAMP

ASSEMBLY -, Serial Range: hose-frame

2шт.

10

S240525

TUBE ASSY.,1" OD x 6, 4.5" L

TUBE - from front port of outside valve and at swivel ports No. 3 and 6

3шт.

11

S240524

TUBE ASSY.,0.75" OD x 4.5, 3.5" L

TUBE - at swivel ports No. 2 and 7

2шт.

12

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 190

1шт.
