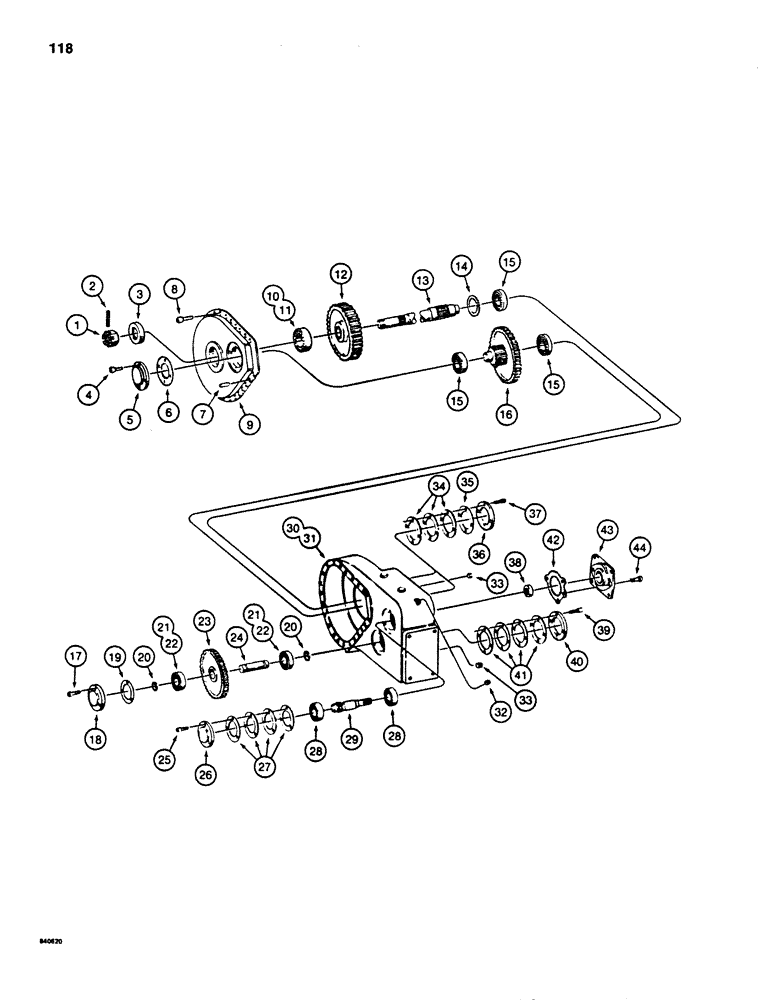

Запчасти Case 880D (118) - FINAL DRIVE TRANSMISSION (04) - UNDERCARRIAGE

S618047

TRANSMISSION

ASSEMBLY - final drive, left-hand, Includes: Ref. 1 - 44

1шт.

S618048

TRANSMISSION

ASSEMBLY - final drive, right-hand, Includes: Ref. 1 - 44

1шт.

1

25-1332

NUT,2"-12, G5

NUT - hex, slotted, 2" - 12NF

1шт.

2

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

PIN, 5/16" x 2 3/4", Slotted

1шт.

3

S242031

OIL SEAL

SEAL - output shaft

1шт.

4

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - hex socket head, self-locking, 3/8" - 16NC x 7/8"

4шт.

5

S217974

COVER

- bearing, output shaft, outer

1шт.

6

S204088

SHIM,.010" Thk

Gasket (.254 mm) .010" Thk

1шт.

7

S65037

DOWEL

PIN - 5/8" x 1-1/4"

2шт.

8

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

BOLT - hex socket head, self-locking, 1/2" - 13NC x 1-1/8"

22шт.

9

S952720

COVER

C0VER - gear, final drive, use Loctite 271 red to form a seal between cover and housing, see below

1шт.

10

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - tapered roller bearing

1шт.

11

A27732

BEARING CUP

CUP - roller bearing

1шт.

12

S603741

GEAR

- output

1шт.

13

S615322

SHAFT

OUTPUT SHAFT - final drive

1шт.

14

A10000

SNAP RING,#306, Ext

RING, Snap, , output shaft #306, Ext

1шт.

15

S65025

BEARING ASSY

TAPERED ROLLER BERARING ASSEMBLY - includes cone and cup

3шт.

16

S603740

GEAR

CLUSTER GEAR - intermediate, includes shaft

1шт.

17

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - hex socket head, self-locking, 3/8" - 16NC x 7/8"

3шт.

18

S210368

COVER

- bearing

1шт.

19

S204092

SHIM,.010" Thk

Gasket (.254 mm) .010" Thk

1шт.

20

A7409

SNAP RING,#137, Ext

RING, Snap, , intermediate shaft #137, Ext

2шт.

21

G57452

ROLLER BEARING

CONE - tapered roller bearing

2шт.

22

G57451

BEARING, CUP

CUP - roller bearing

2шт.

23

S53338

GEAR

CLUSTER GEAR - intermediate, uses separate shaft

1шт.

24

S210366

SHAFT

- intermediate

1шт.

25

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - hex socket head, self-locking, 3/8" - 16NC x 7/8"

3шт.

26

S203411

COVER

- bearing

1шт.

27

S204093

SHIM,.003" Thk

Gasket (.076 mm) .003" Thk

1шт.

27

S204094

SHIM

GASKET - shim, .007" (.127 mm) thick

1шт.

27

S204095

SHIM

GASKET - shim, .010" (.178 mm) thick

1шт.

27

S204096

SHIM,.010" Thk

Gasket (.254 mm) .010" Thk

1шт.

28

S65036

BEARING ASSY

TAPERED ROLLER BEARING ASSEMBLY - includes cone and cup

2шт.

29

S511703

SHAFT

INPUT SHAFT - transmission

1шт.

30

S952724

HOUSING

- gear, right-hand transmission

1шт.

31

S952725

HOUSING

- gear, left-hand transmission

1шт.

17423

PIN

LOCTITE - 271 red, 50cc bottle, use in place of gasket between gear cover and hosing

1шт.

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - final drive

2шт.

32

221-665

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

1шт.

33

221-845

PLUG,Hex Soc, 3/4"-14

- square socket head, 3/4" NPT

2шт.

34

S204085

GASKET

- shim, .003" (.076 mm) thick

1шт.

34

S204086

SHIM,.005" Thk

Gasket (.127 mm) .005" Thk

1шт.

34

S204087

SHIM,.007" Thk

Gasket (.178 mm) .007" Thk

1шт.

34

S204088

SHIM,.010" Thk

Gasket (.254 mm) .010" Thk

1шт.

35

S204097

SHIM,.030" Thk

Gasket (.762 mm) .030" Thk

1шт.

36

S217974

COVER

- bearing

2шт.

37

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - hex socket head, self-locking, 3/8" - 16 NC x 7/8"

8шт.

38

S106799

OIL SEAL

OIL SEAL - input shaft

1шт.

39

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - hex socket head, self-locking, 3/8" - 16 NC x 7/8"

4шт.

40

S210368

COVER

- bearing

1шт.

41

S204089

SHIM,.003" Thk

Gasket (.076 mm) .003" Thk

1шт.

41

S204090

SHIM,.005" Thk

Gasket (.127 mm) .005" Thk

1шт.

41

S204091

SHIM,.007" Thk

Gasket (.178 mm) .007" Thk

1шт.

41

S204092

SHIM,.010" Thk

Gasket (.254 mm) .010" Thk

1шт.

42

S80305

GASKET

- brake, Serial Range: adapter-transmission

1шт.

43

S510433

ADAPTER

-, Serial Range: brake-transmission

1шт.

44

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

BOLT - hex socket head, 1/2" - 13 NC x 1-1/4"

2шт.

B17423

LOCTITE

LOCKTITE - 271 red, 50cc bottle, used in place of gasket on some machines between track brake adapter and transmission

1шт.
