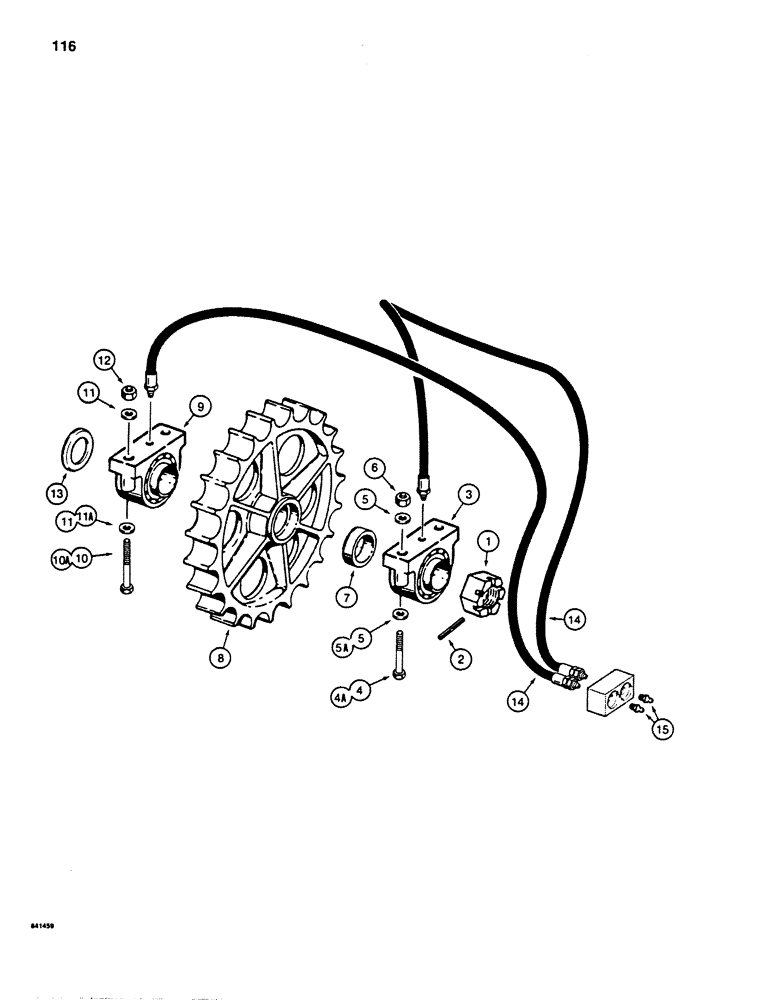

Запчасти Case 880D (116) - TRACK DRIVE SPROCKET AND BEARINGS (04) - UNDERCARRIAGE

1

25-1332

NUT,2"-12, G5

NUT - hex, slotted, 2" - 12 NF

2шт.

2

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

PIN, 5/16" x 2 3/4", Slotted

2шт.

3

S242157

BEARING CARRIER

PILLOW BLOCK AND BEARING ASSEMBLY - outer, includes Refs. 3A - 3E

2шт.

3a

NSS

NOT SOLD SEPARAT

HOUSING - pillow block, not shown

1шт.

3b

N60324

SEAL

- bearing, not shown

2шт.

3c

N60323

TAPERED BEARING

BEARING - complete, not shown

1шт.

3d

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, bottom of bearing, not shown

1шт.

3e

221-1849

PLUG

- hex socket head, 1/8" NPT, top of bearing, remove and install lubrication hose, not shown

1шт.

4

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8" - 11 NC x 3-1/2", grade 8, uses Ref. 5 next to the bolt head only, if used

4шт.

4a

26-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex head, 5/8" - 11 NC x 4", grade 8, uses Ref. 5A next to the bolt head and Ref. 5 next to the nut, if used

4шт.

5

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 5/8", hardened, .173" (4.394 mm) thick

4шт.

5a

S120236

WASHER

- flat, 5/8", hardened, .490" (12.446 mm) thick, if used

4шт.

6

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8"- 11 NC

4шт.

7

S221929

BUSHING,58.14mm ID x 83.84mm OD x 43.56mm L

COLLAR - sprocket to outer pillow block bearing

2шт.

8

S619061

SPROCKET ASSY.

SPROCKET - track drive (Replaces S610420)

2шт.

9

S242158

BEARING CARRIER

PILLOW BLOCK AND BEARING ASSEMBLY - inner, includes refs. 9A - 9F

2шт.

9a

NSS

NOT SOLD SEPARAT

HOUSING - pillow block, not shown

1шт.

9b

N60125

SEAL

- bearing, not shown

2шт.

9c

N60353

RING, SNAP

SNAP RING - bearing, not shown

1шт.

9d

N60124

BEARING ASSY

BEARING - complete, not shown

1шт.

9e

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, bottom of bearing, not shown

1шт.

9f

221-1849

PLUG

- hex socket head, 1/8" NPT, top of bearing, remove and install lubrication hose, not shown

1шт.

10

26-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 8

- hex head, 3/4" - 10 NC x 4-1/4", grade 8, uses Ref. 11 under the bolt head and next to the nut, if used

4шт.

10a

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- hex head, 3/4" - 10 NC x 4-1/2", grade 8, uses Ref. 11A next to the bolt head and Ref. 11 next to the nut, if used

4шт.

11

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4" hardened, .240" (.610 mm) thick

4-8шт.

11a

S120234

WASHER

- flat, 3/4", hardened, .490" (12.446 mm) thick, if used

4шт.

12

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10NC, plated

4шт.

13

S516449

SPACER

- inner pillow block bearing to transmission shaft seal

2шт.

14

S120463

HOSE ASSY.

HOSE - remote lubrication, 32" (813 mm) long, if used (Replaces S120381)

4шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.
