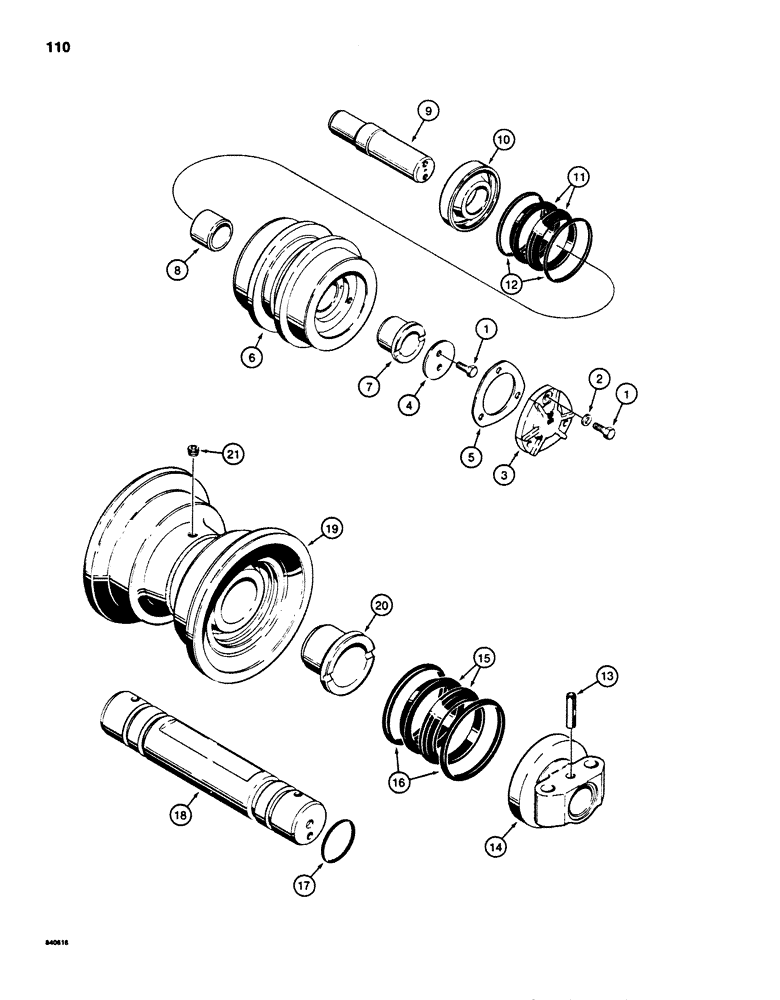

Запчасти Case 880D (110) - TRACK CARRIER ROLLER, UPPER (04) - UNDERCARRIAGE

R33965

ROLLER

CARRIER ROLLER ASSEMBLY - track, Includes: Ref. 1 - 12

4шт.

1

813-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

- hex head, 10 mm - 1.50 x 20 mm (8.8), plated

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER

1шт.

3

R33959

CYLINDER END CAP

CAP - carrier roller

1шт.

4

R33960

PLATE

- retainer

1шт.

5

R33964

GASKET

- cap

1шт.

R33967

CARRIER

ROLLER - track, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

ROLLER - track

1шт.

7

R33951

BUSHING

- roller, with flange

1шт.

8

R33958

BUSHING

- roller

1шт.

R33969

SHAFT

ASSEMBLY - carrier roller, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - carrier roller

1шт.

10

R33962

RETAINER

- seal

1шт.

R33607

SEAL

FACE SEAL - carrier roller, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

- seal

2шт.

R33552

ROLL

TRACK ROLLER ASSEMBLY - single flange, lower, Includes: Ref. 13 - 21

12-14шт.

13

R33563

ROLL PIN

PIN - cap retaining, track roller, lower

2шт.

14

R33560

BUSHING

CAP - track roller, lower

2шт.

R33564

SEAL

FACE SEAL - track roller, lower, Includes: Ref. 15 and 16

4шт.

15

NSS

NOT SOLD SEPARAT

SEAL - rubber, track roller, lower

2шт.

16

N6846

O-RING,75.7mm ID x 9.5mm Width

- seal, track roller, lower

2шт.

17

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- shaft, track roller, lower

2шт.

18

R33561

SHAFT

- roller, track, lower

1шт.

R33558

ROLLER

TRACK ROLLER - single flange, lower, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

ROLLER - track, lower

1шт.

20

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- roller, track, lower

2шт.

21

R33557

PLUG

- roller, track, lower

1шт.
