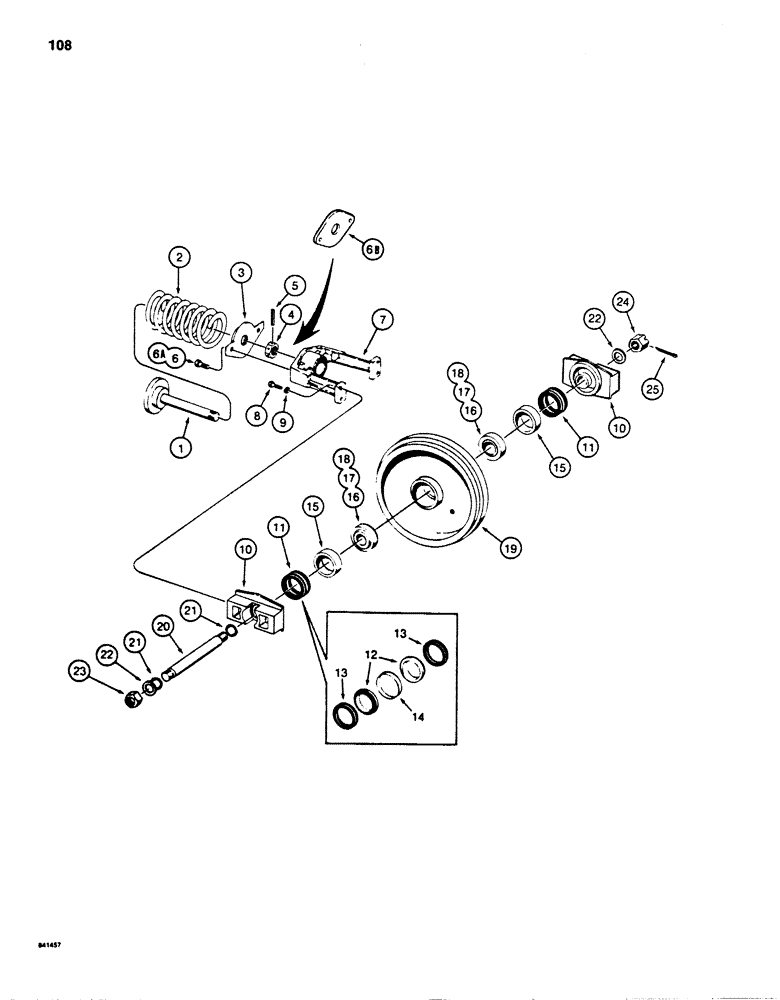

Запчасти Case 880D (108) - TRACK ADJUSTER AND IDLER (04) - UNDERCARRIAGE

S512125

SHOCK ABSORBER

SPRING AND GUIDE ASSEMBLY - track adjuster, Includes: Ref. 1 - 5

2шт.

1

S215127

GUIDE

- track tension spring

1шт.

2

S215129

SPRING

- track tension

1шт.

3

S233910

PLATE

- mounting, Serial Range: spring-yoke

1шт.

4

S87010

NUT

- special, spring, Serial Range: guide-plate

1шт.

5

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

ROLL PIN - 1/4" x 2-1/2"

1шт.

6

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

Used on models without spacer, ref. 6B Hex, 5/8"-11 x 1 3/4", G5

4шт.

6a

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4", used on models with spacer, ref. 6B

4шт.

Bolt - adopt 113-600 .

1шт.

6b

S513780

SPACER

- spring guide plate to yoke, if used

2шт.

Spacer was never used on 880D per ECS#DR8885-003.

1шт.

7

S602025

YOKE

- front idler wheel

2шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex head, 5/8" - 11 NC x 1-3/4"

8шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

10

S505503

GUIDE

BRACKET - idler wheel

4шт.

11

R39273

SEAL

ASSEMBLY - face, Includes: Ref. 12 - 14

4шт.

12

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - seal repair, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

14

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

15

D36069

RING

- seal retaining

4шт.

16

S218927

BEARING ASSY

TAPERED ROLLER BEARING ASSEMBLY - idler wheel, Includes: Ref. 17 and 18

4шт.

17

40413

BEARING, CONE,2" ID x 1.2188" OD

CONE - tapered roller bearing

1шт.

18

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - roller bearing (Replaces A27732)

1шт.

19

R50192

FRONT IDLER

WHEEL - idler

2шт.

20

S218864

IDLE SHAFT

SHAFT - idler wheel

2шт.

21

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- idler wheel shaft

4шт.

22

D36065

WASHER

- idler wheel shaft

4шт.

23

131-92

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2"-12NF

2шт.

24

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - castle, 1-1/2" - 12NF

2шт.

25

132-102

COTTER PIN,3/16" x 2 1/2"

PIN, Split (Cotter), 3/16" x 2 1/2"

2шт.
