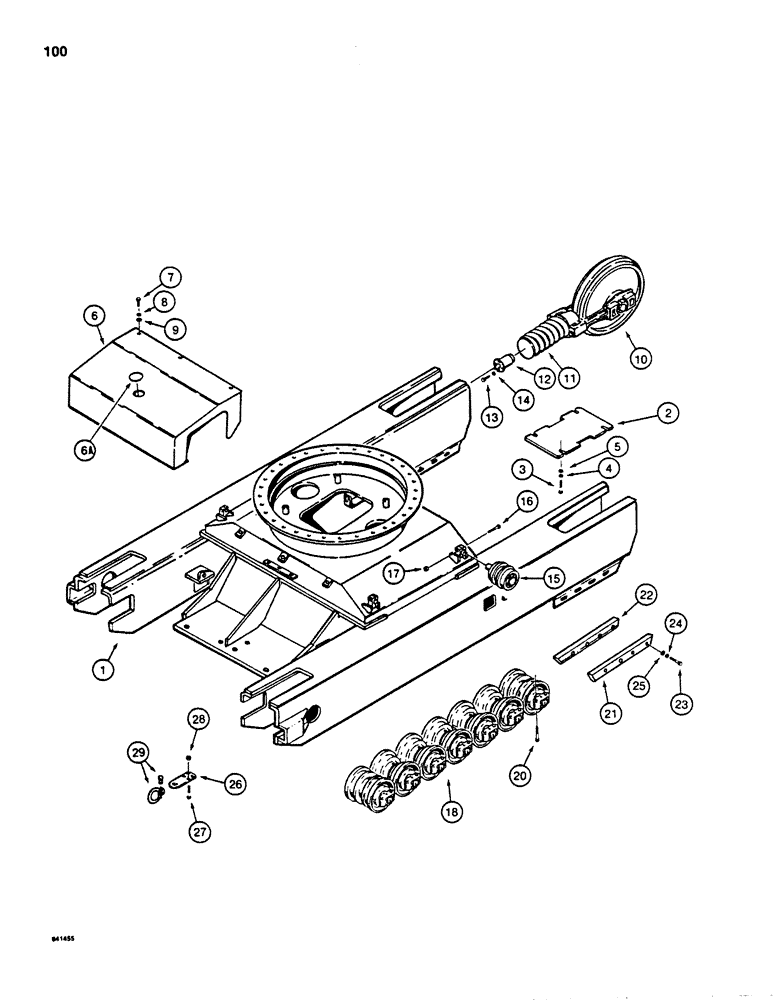

Запчасти Case 880D (100) - CRAWLER UNDERCARRIAGE AND TRACK FRAMES, MODELS WITHOUT LEVELER (04) - UNDERCARRIAGE

1

S511346

UNDERCARRIAGE - includes track frames

1шт.

2

S513354

GUARD

- swivel

1шт.

3

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

4

192-33

LOCK WASHER,1 1/8"

WASHER, LOCK, 1 1/8"

4шт.

5

195-530

WASHER,7/16"

- flat, 1/2", plated

4шт.

6

S512348

COVER

- track drive motors

1шт.

6a

205-72

HOLE PLUG BUTTON,3"

PLUG - (76 mm) diameter, if used 3"

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

9

195-105

WASHER,7/16"

- flat, 1/2", plated

5шт.

10

REF

INSTRUCTION

IDLER - track, see Figure 108

2шт.

11

REF

INSTRUCTION

ADJUSTER - track, see Figure 108

2шт.

12

S514603

CYLINDER

- track adjustment, parts list Figure 106

2шт.

13

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

R33965

ROLLER

CARRIER ROLLER - upper, parts list Figure 110

4шт.

16

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

18

R33552

ROLL

TRACK ROLLER - lower, parts list Figure 110

14шт.

20

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex head, 3/4" - 10 NC x 3-1/4", plated

56шт.

21

S511363

BAR

- wear, right-hand

2шт.

22

S511364

BAR ASSY.

BAR - wear, left-hand

2шт.

23

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

16шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

25

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated

16шт.

26

S209710

PLATE

- drawbar

1шт.

27

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex head, 3/4" - 10 NC x 3-1/4", plated

4шт.

28

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC, plated

4шт.

29

240-11

SHACKLE

CLEVIS - drawbar, includes clevis pin and cotter pin

1шт.
