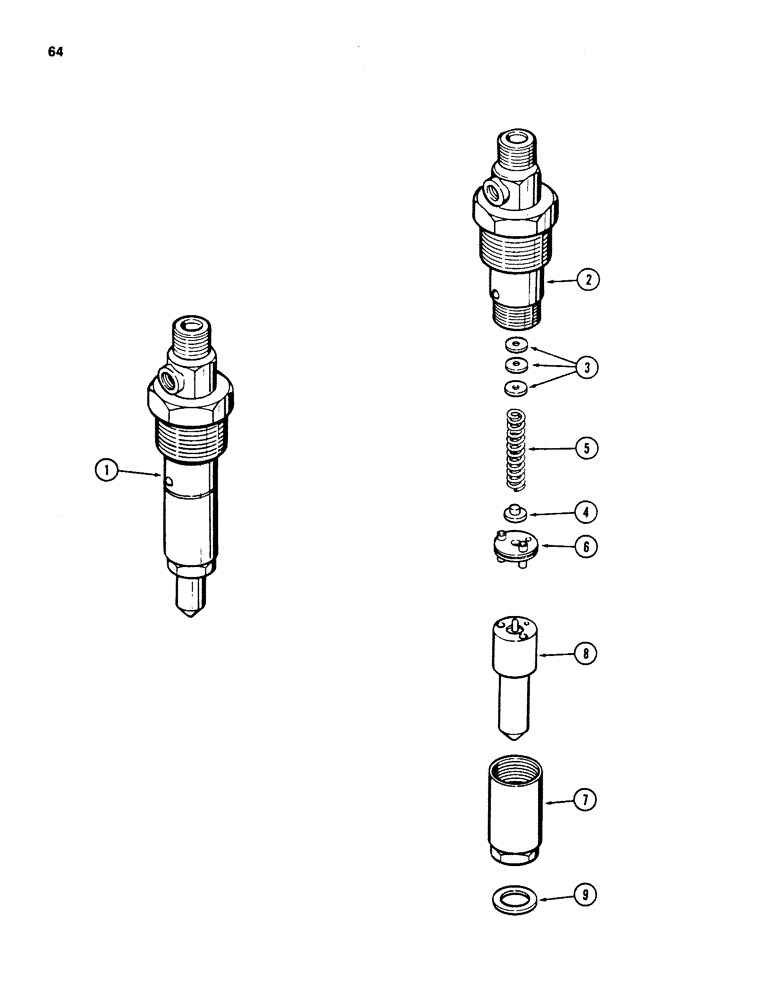

Запчасти Case 880D (064) - FUEL INJECTION NOZZLE, 6T-590 DIESEL ENGINE (02) - FUEL SYSTEM

1

J904197

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection (Bosch), Includes: Ref. 2 - 8

6шт.

1

JR919343

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

1

JC919343

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

6шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - injector (Order J904197) (Reference No. J905196)

1шт.

A48186

KIT

SHIM KIT - nozzle opening pressure, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.00 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.04 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.08 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.10 mm (5 in kit)

1шт.

2

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.14 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.18 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.20 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.24 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.28 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.30 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.34 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.38 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.40 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.44 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.48 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.50 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.54 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.58 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.60 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.64 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.68 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.70 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.74 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.78 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.80 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.84 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.88 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.90 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.94 mm (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.98 mm (5 in kit)

1шт.

4

J905153

SPINDLE

SEAT - nozzle pressure spring

1шт.

5

J905152

SPRING

SPRING - nozzle pressure

1шт.

6

J905154

PLATE

VALVE STOP ASSEMBLY - nozzle

1шт.

7

A48201

NUT

CAP NUT - nozzle end

1шт.

8

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY - nozzle injector (Order J904197)

1шт.

9

J900808

SEAL

GASKET - nozzle (See Fig. Note)

6шт.
