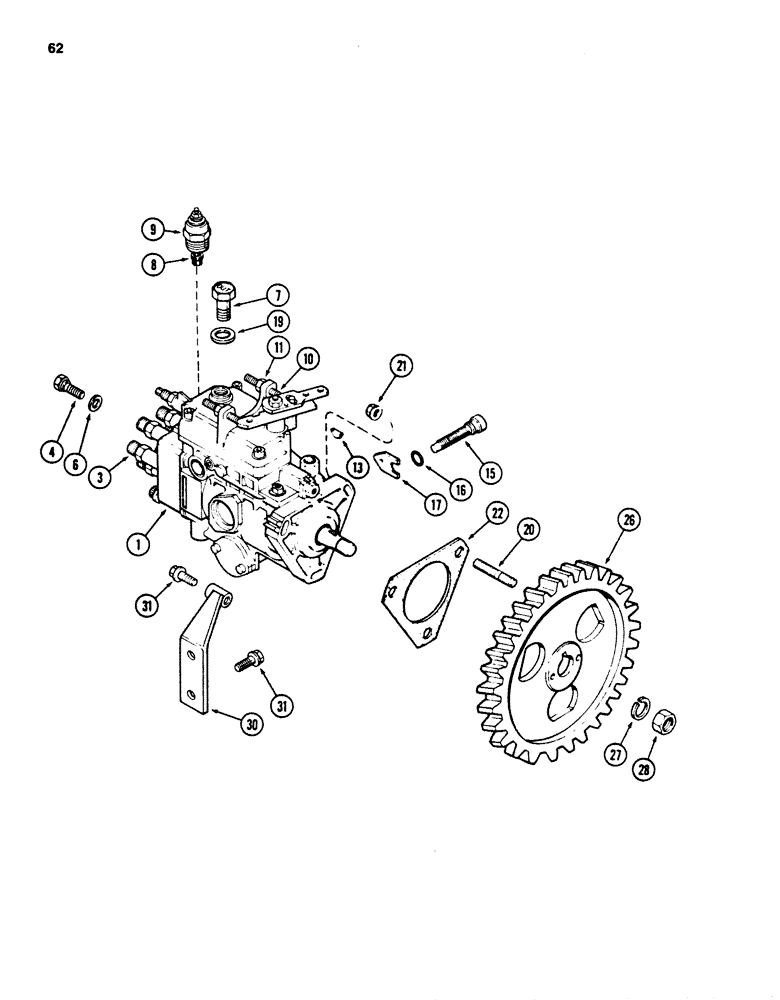

Запчасти Case 880D (062) - FUEL INJECTION AND DRIVE, 6T-590 DIESEL ENGINE (02) - FUEL SYSTEM

1

J904536

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection (New), Includes: Ref. 3 - 19

1шт.

1

JR916969

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - NA Only

1шт.

1

JC916969

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

1

JR904536

REMAN-WATER PUMP

PUMP ASSEMBLY - fuel injection (Remanufactured), Includes: Ref. 3 - 19

1шт.

1

JC904536

CORE-HYDRAULIC PUMP

RETURN NUMBER - injection pump (Use this number to return pump to core for credit), Includes: Ref. 3 - 19

1шт.

3

J903571

ADAPTER

FITTING - delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

6

J903573

GASKET

GASKET - vent screw

1шт.

7

J905465

BANJO BOLT

SCREW - banjo, over flow

1шт.

8

J903577

SEAL

SEAL - solenoid

1шт.

9

J903576

SOLENOID

SOLENOID ASSEMBLY - shut down, 24 volt (Replaces J903575)

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idler stop

1шт.

11

J904783

NUT

NUT - idler screw

1шт.

13

J902332

KEY

KEY - pump gear retainer

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW - timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

O-RING - timing lock screw

1шт.

17

J904786

PLATE

PLATE - timing lock

1шт.

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET - delivery valve

6шт.

19

NSS

NOT SOLD SEPARAT

WASHER - over flow screw

1шт.

20

J902501

STUD

STUD - pump mounting, M8 x 48 mm

3шт.

21

J900589

NUT

NUT - flanged hex, M8

3шт.

22

J905685

GASKET

GASKET - pump mounting

1шт.

26

J902236

GEAR

GEAR - drive, pump

1шт.

27

92-9

BEARING WASHER,9/16"

LOCK WASHER, 9/16"

1шт.

28

A77444

JAM NUT

NUT - hex jam, 9/16 inch NF

1шт.

30

J905313

LEVER

BRACE - injection pump

1шт.

31

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

BOLT - flanged hex, M8 x 20 mm

3шт.
