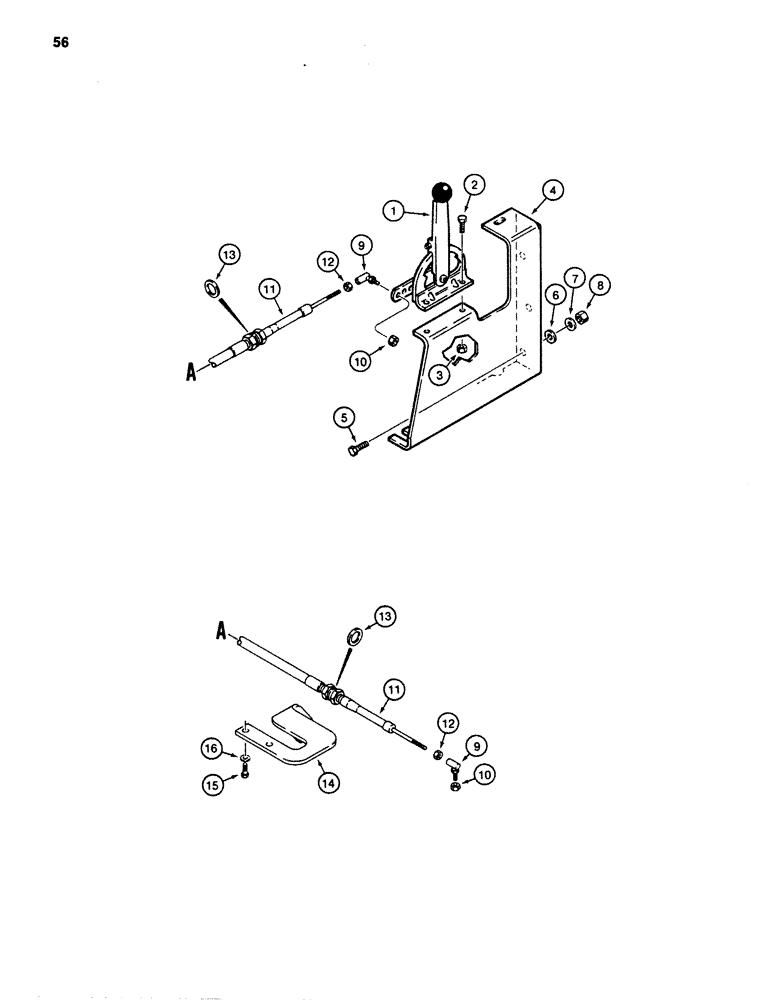

Запчасти Case 880D (056) - THROTTLE (02) - FUEL SYSTEM

1

S514567

LEVER

- throttle

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20NC, plated

2шт.

4

S514582

BRACKET

- throttle lever mounting

1шт.

Adopt S516920 Bracket with Nov. 85 production per ECS DR0185-060.

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used on bolt for harness ground connection

1шт.

7

195-104

WASHER,3/8"

- flat, , plated 3/8"

3шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16NC

3шт.

9

A10329

BALL JOINT,1/4" - 28 x 1"

- throttle cable

2шт.

10

131-498

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4" - 28NF, plated

2шт.

11

S238507

CABLE

- throttle

1шт.

12

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

13

195-107

WASHER,9/16"

- flat, , plated, added to cable hardware 9/16"

2шт.

14

S516655

BRACKET

- throttle cable, at engine

1шт.

15

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

892-1108

LOCK WASHER,M8

plated M8

2шт.
